The YFFY-600 Solar Marine Warning Lights provides a reliable, self-contained safety signaling solution without the need for power transmission cables. It is specifically designed for locations where laying cables is logistically challenging, cost-prohibitive, or completely lacking power supply.
This solar marine navigation lights equipped with an advanced internal circuit board, users can customize the light flashing characteristics effortlessly using two rotary switches on the PCB, offering full compliance with international maritime signaling requirements.

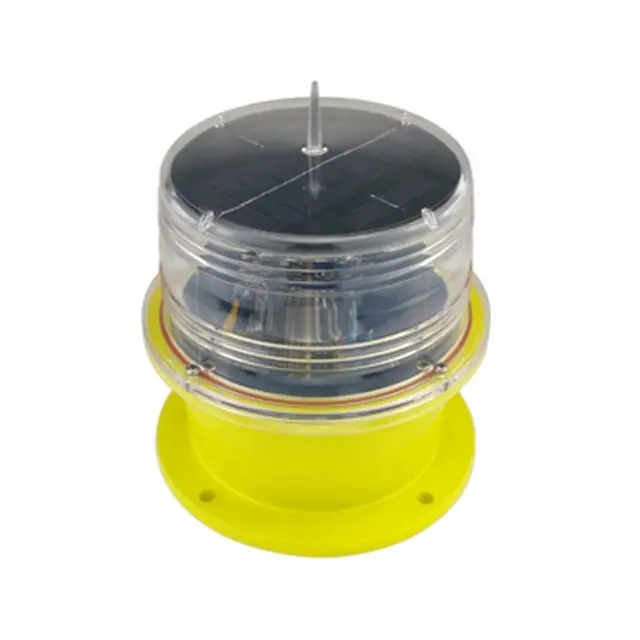

YFFY-600 1-3NM Solar Marine Lantern (IALA Flashing Characteristics Adjustable)
- Visual Range: Up to 3 Nautical Miles (Tc = 0.74) for reliable navigation safety.
- IALA Standard Compliance: 100% compliant with IALA Recommendations E-200-1; built-in PCB rotary switches allow easy adjustment across 256 flashing characteristics.
- Harsh Environment Protection: Complete IP68 full-sealing structure with die-casting aluminum base and impact-resistant Polycarbonate lens. Built-in bird spike.
- Cable-Free Autonomy: Fully integrated monocrystalline silicon solar panel and replaceable Lithium-ion battery providing over 180 hours of flashing runtime without sunshine.
- Smart Automation: YFFY Solar LED Warning Lights with integrated photocell for reliable dusk-to-dawn autonomous operation.
Comprehensive Technical Specifications of Solar Marine Warning Lights
| Specification Parameter | Technical Value / Standard |
| Model Name | YFFY-600 Solar Marine Navigation Lights |
| Visual Distance | Up to 3 Nautical Miles (1NM @ 1 cd, 2NM @ 5 cd, 3NM @ 20 cd) |
| Light Source & Lifespan | Ultra-bright, energy-efficient specialized cold LED (>100,000 Hours) |

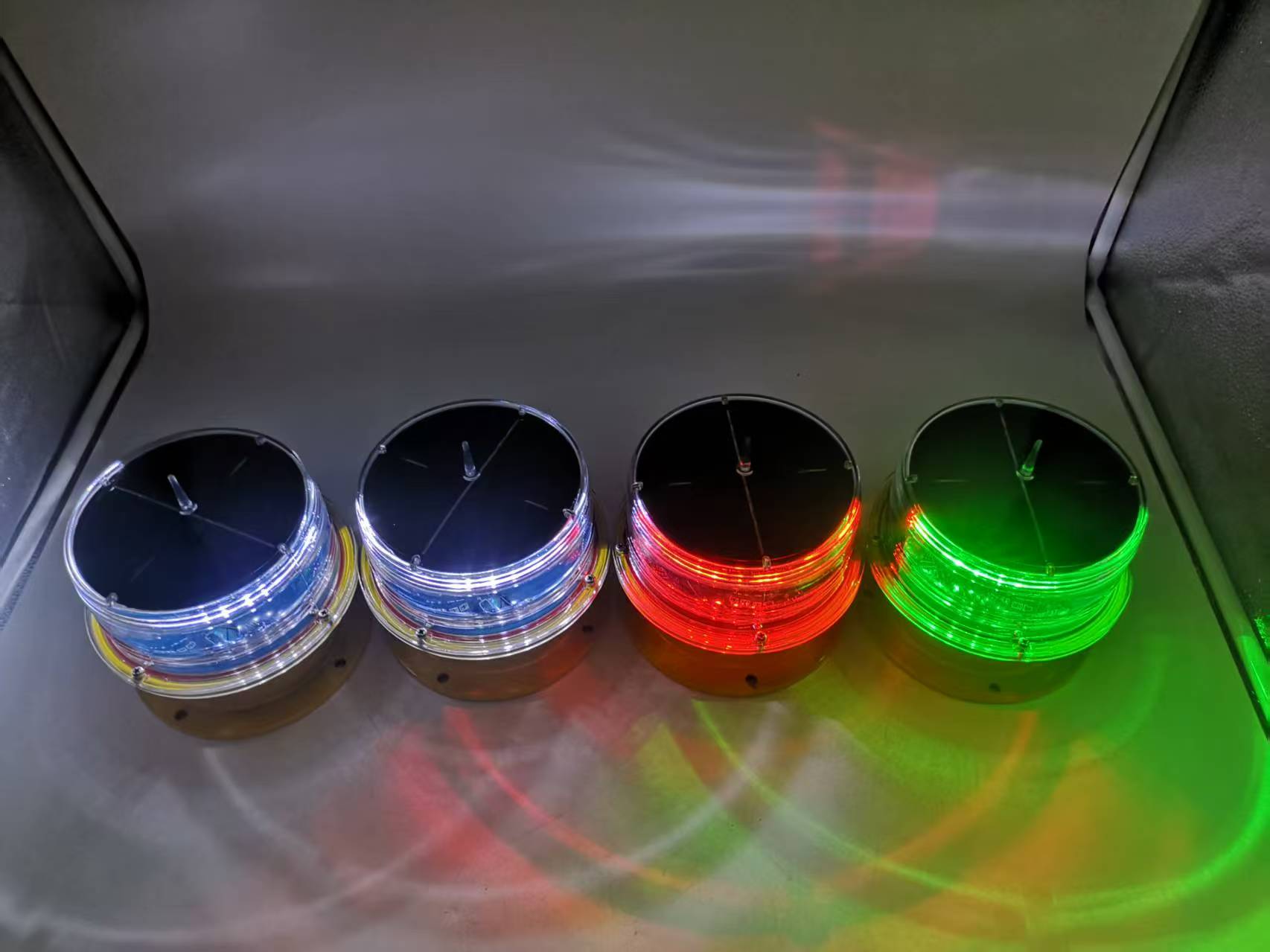

| Emitting Colors | Red, Green, Yellow (Amber), Blue, White, Bi-Color (Green/Red) |
| Horizontal Output | 360° Omnidirectional omni-signal |
| Working Modes | Steady-burning or Flashing Mode switchable |
| Flash Characteristics | 256 IALA-compliant flashing characteristics adjustable via PCB rotary switches |
| Solar Panel Type | High-efficiency Integrated Monocrystalline Silicon |
| Battery System | Replaceable Eco-Friendly Lithium-ion Battery (3.7 VDC) |
| Autonomy (No Sunshine) | Flashing Mode: >180 Hours | Steady Mode: >50 Hours (Option up to 280 hours) |
| Ingress Protection | IP68 Waterproof Standard (Fully sealed robust structure) |
| Materials | Lens: Industrial Polycarbonate (UV-Stabilized) | Base: Die-casting Aluminum |
| Environmental Tolerance | Operating Temp: -55°C to +60°C | Max Wind Load: 80 m/s |

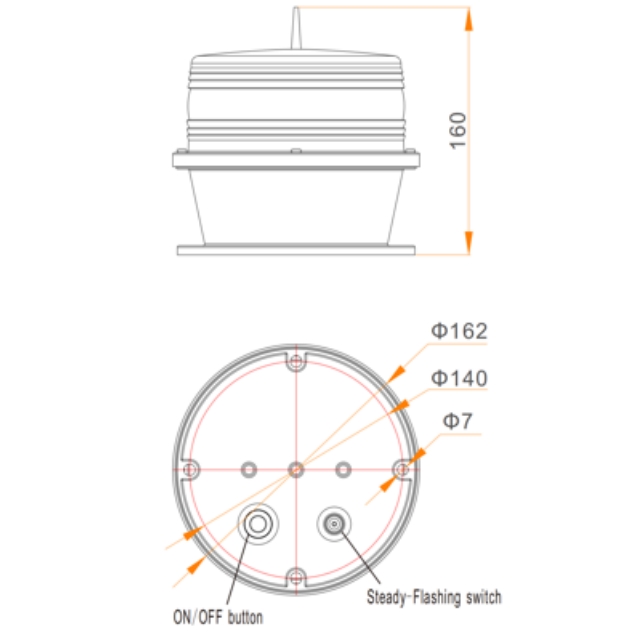

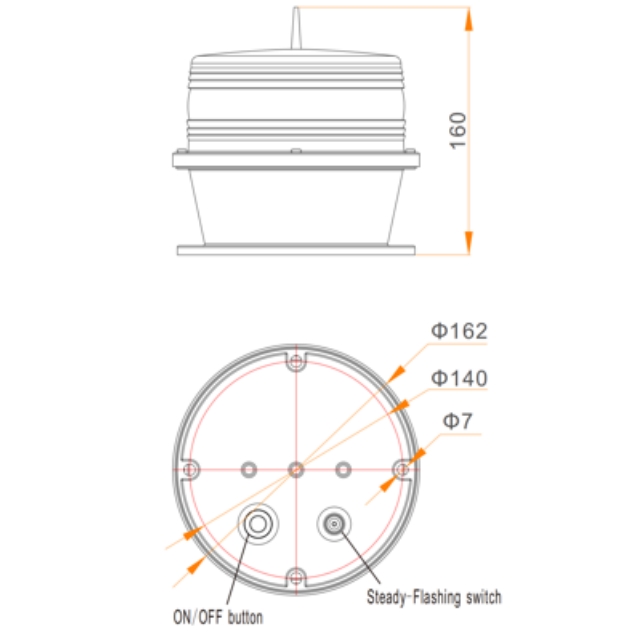

| Dimensions & Weight | Overall: Φ162 × 160 mm | Installation: Φ140 × M6 | Net Weight: 1 kg |
| Compliance Certification | CE, RoHS, IALA E-200-1 Recommendation |
Key Applications & Engineering Use:

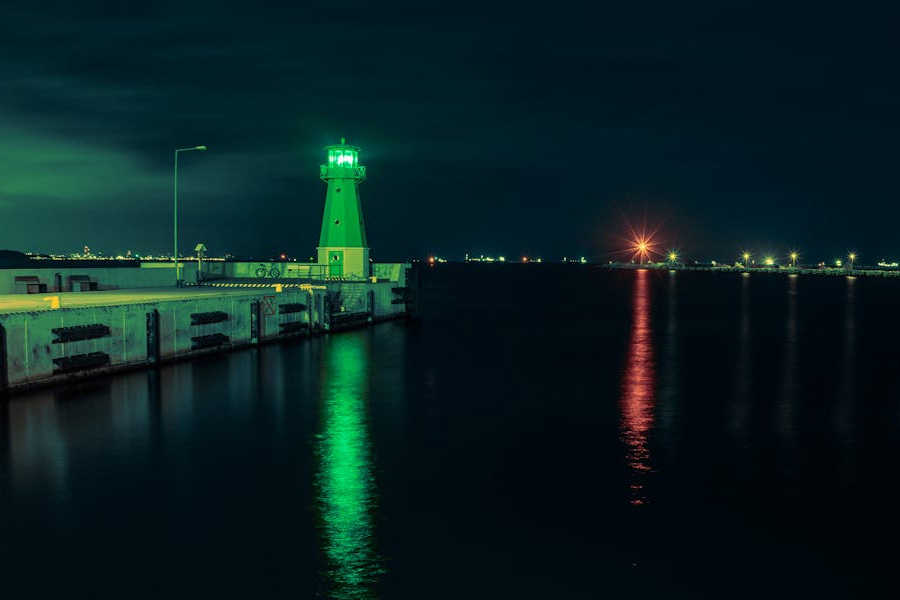

- Marine Navigation Buoys & Channels: Lightweight 1kg design perfect for installation on standard lateral, cardinal, and ocean buoys to guide sailing ships, yachts, and commercial vessels safely. Very suit as solar marine buoy lights, solar lights for navigation aids etc.
- Ports, Piers, & Jetties: Rugged marine-grade construction withstands continuous wave splash and salt spray on commercial concrete and steel docks.
- Offshore Platforms & Derricks: Ideal cable-free signaling solution for remote offshore oil and gas platforms where power distribution is restricted. Hot type as a solar offshore lights.
- Commercial Aquaculture: Highly cost-efficient night-warning safety lighting for deep-sea fish cages, aquaculture nets, and seaweed farms.
FAQ About Solar Marine Warning Lights
Q1: How Do You Adjust the Flash Codes to Meet Local Maritime Standards?
A: The YFFY-600 solar powered marine lights features two built-in rotary switches on the internal PCB board.
Operators can manually select from 256 distinct IALA-compliant flashing rhythms directly in the field without needing external programming software or tools.
Q2: Can This Solar Lights Withstand Extreme Weather and Temperatures?
A: Yes. Built with die-casting aluminum and UV-stabilized Polycarbonate, it operates reliably from -55°C to +60°C and resists wind loads up to 80m/s. Its fully engineered for Arctic ice environments, tropical heat, and heavy salt spray.
Q3: How Many Days Can The Marine Lantern Operate During Continuous Rainy Weather?
A: YFFY solar marine warning lights equipped with smart power management, the standard model delivers over 180 hours (7.5 days) of continuous autonomy in flashing mode without any sunlight. A 280-hour extended option is also available for high-latitude regions.
Q4: What Features Make This Unit Low-maintenance For Offshore Projects?
A: This solar lights features a built-in photocell for automatic dusk-to-dawn operation and an integrated top bird spike. The spike prevents bird droppings from covering the monocrystalline solar panel, ensuring uninterrupted solar charging.
Q5: Is the Solar Marine Lanterns Battery Replaceable, and What is the Overall Product Lifespan?
A: The ultra-bright cold LED light source lasts over 100,000 hours (10+ years). The eco-friendly 3.7V Lithium-ion battery is fully replaceable, allowing field technicians to easily extend the service life of the fixture.
