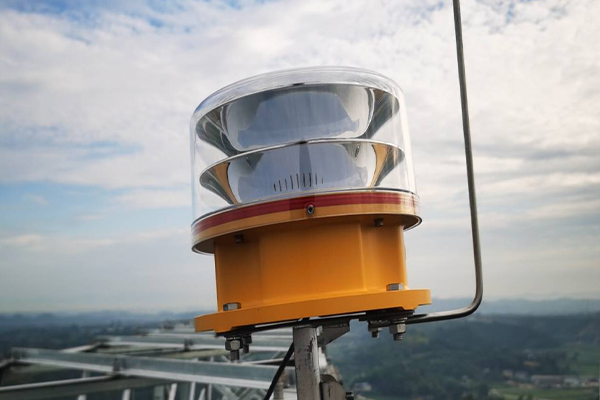

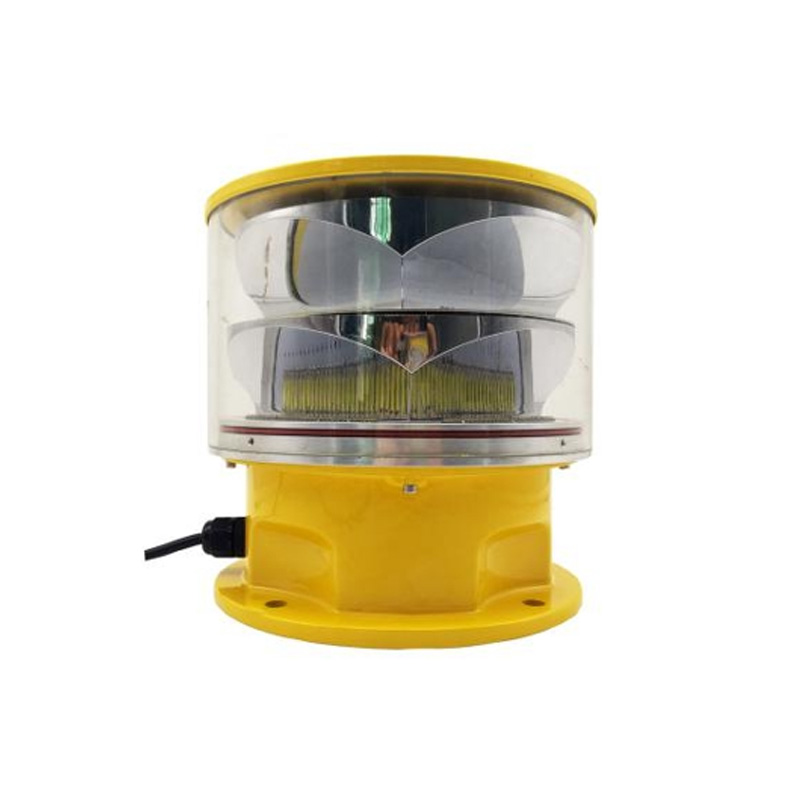

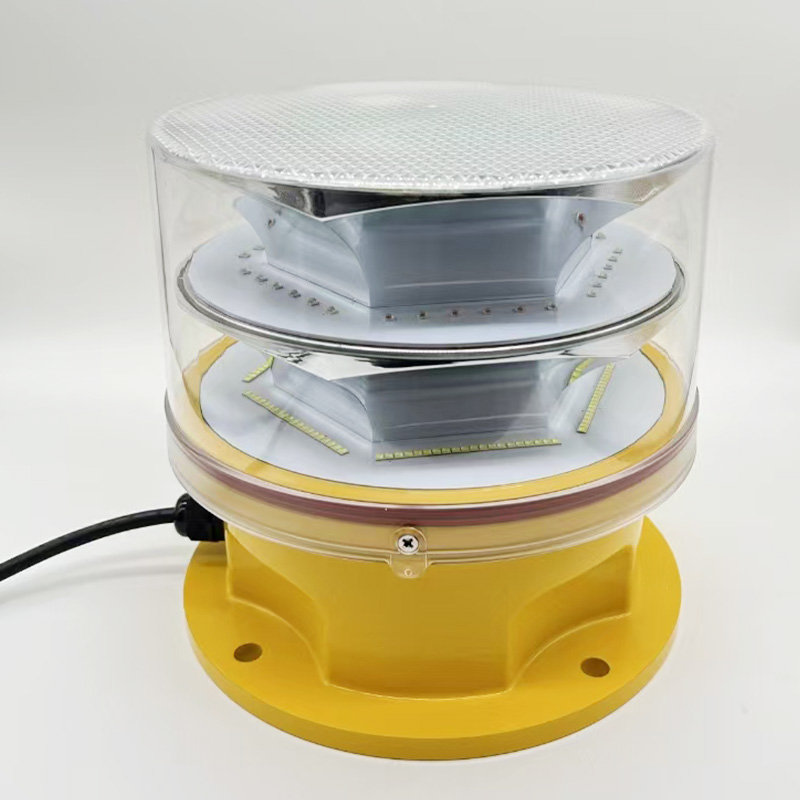

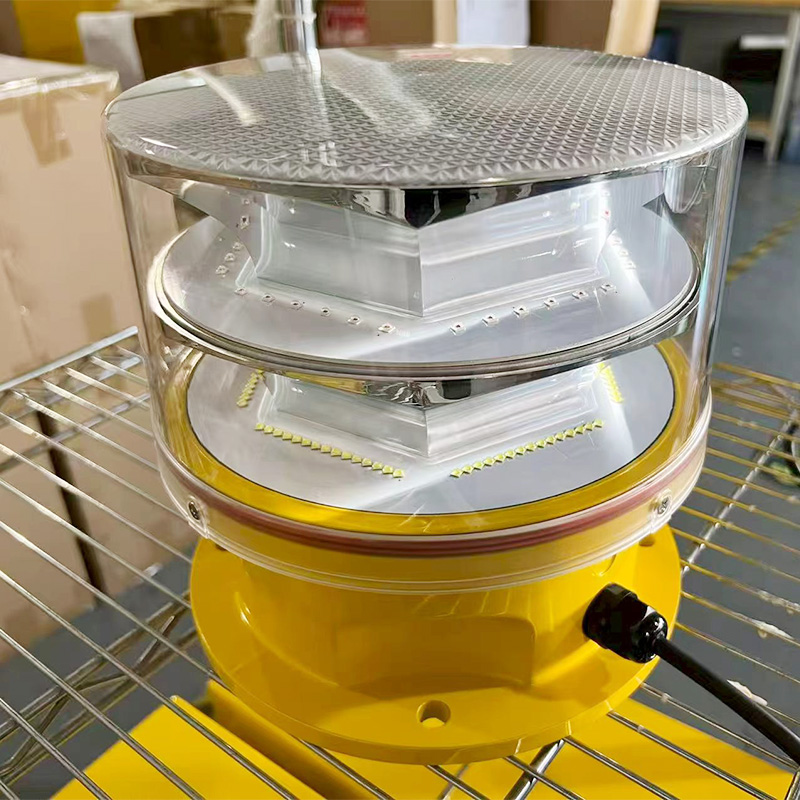

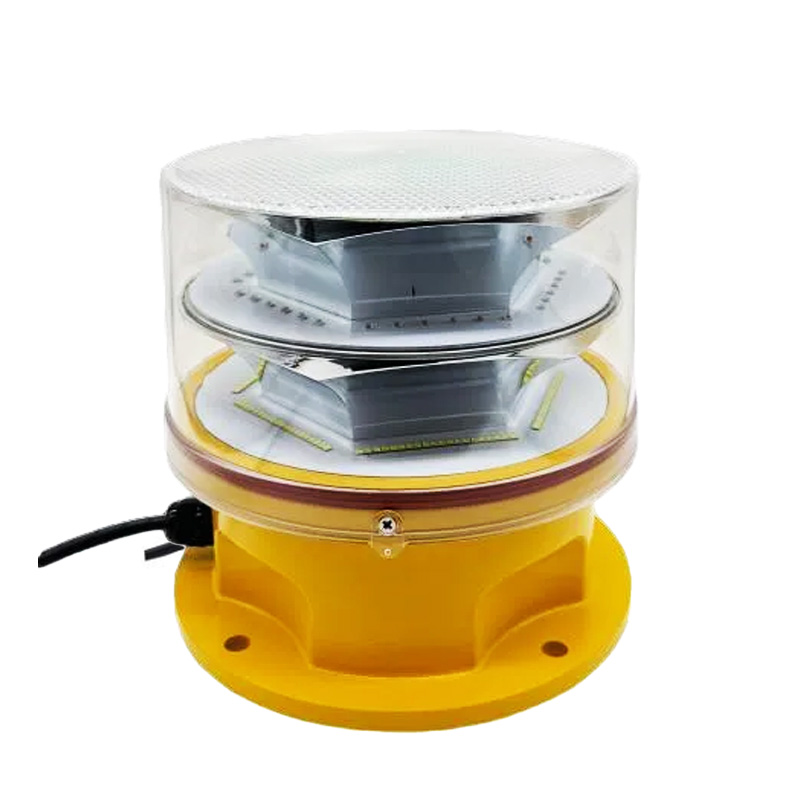

LED Medium-Intensity Red & White Dual Aviation Obstruction Light
The YFFY-MI-BF Medium-Intensity Aviation Obstruction Light is a Red & White dual-color LED aviation warning light designed for tall structures and aviation obstacles typically requiring medium-intensity marking. The Red and White Medium-intensity Aviation Obstruction Light designed for marking the top of obstacles which height is between 45 – 150 meters.

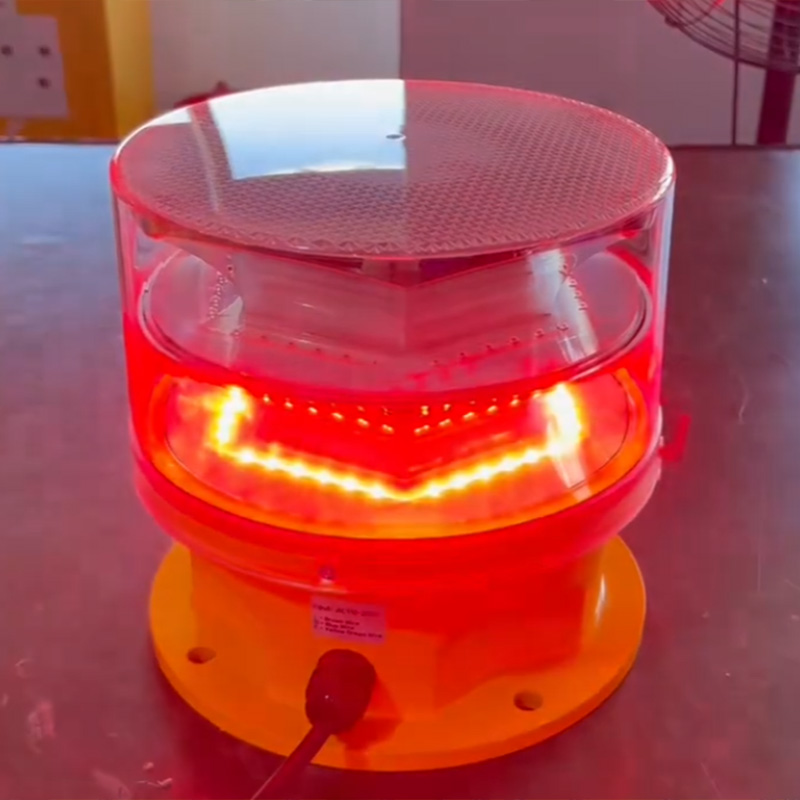

It provides flashing white light during daytime and flashing red light at night, with automatic day/night switching through an integrated photocell. Self-designed reflector is used to converge light, which could reach the standard light intensity with as less as the power consumption. The high-efficiency CREE LED optical system provides 360° horizontal visibility and stable light output for reliable obstacle identification, ensure the long life experience and good performance.
The light is suitable for communication towers, chimneys, wind turbines, high-rise buildings, tower cranes, bridges, and other structures. GPS synchronization, remote monitoring, and other control functions can be customized for large-scale projects.
As an experienced aviation obstruction light manufacturer, YFFY Lights provides OEM, ODM, and project-specific lighting solutions for different power supplies, flashing modes, synchronization systems, and installation requirements.
Aviation Standards & Compliance
The YFFY-MI-BF is designed for medium-intensity aviation obstruction lighting applications and can be configured according to applicable ICAO and FAA requirements.
Depending on the installation location and project requirements, the applicable aviation authority and local regulations should be confirmed before final product selection and installation.
Typical references:
- ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type A, Medium Intensity Type B Obstruction Light
- FAA L-865 / L-864 applications
- Local Civil Aviation Authority requirements
Features of Red and White Medium-intensity Aviation Obstruction Light
Electrical
- CREE ultra-high-intensity LED as the light source, providing lower power consumption and reduced maintenance compared with incandescent or halogen lamps.
- Power supply options: DC 12V, 24V, or 48V; AC 110–240V.
Physical
- Unique optical design with a UV-resistant polycarbonate reflector for efficient light focusing.
- UV-resistant, powder-coated bright yellow base for improved visibility and durability.
- Die-cast aluminum housing with excellent corrosion resistance and strong protection against shock and vibration.
- Built-in pressure relief valve allows air circulation while preventing water ingress, helping maintain proper internal temperature and reliable operation.
System design
- Built-in photocell for day/night operation (dusk to dawn operation)
- Surge and lightning protection
Optional
- Dry contact Alarm output for remote monitoring
- Infrared LED for pilot using NVG
- GPS synchronization
Technical Parameter of YFFY-MI-BF LED Aviation Obstruction Light
| SPECIFICATIONS | YFFY-MI-BF LED Medium-intensity Red & White Dual Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | CREE High Intensity LED |
| Available Colors | White (Daytime); Red (Night) |
| Intensity (cd) | ≥2000cd (Daytime); ≥2000cd (Night) |
| Horizontal Output (degrees) | 360 |
| Vertical Divergence (degrees) | 3 |
| Flash Characteristics | 20-60 flashes per minute (factory setting: 40fpm) |
| Operation Mode | Automatic dusk-to-dawn operation as standard 24-hour continuous operation available as an option |
| LED Life Experience (hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC(12V, 24V, 36V, 48VDC) or AC(110-240VAC) |
| Power (W) | ≤10W (night), ≤30W (daytime) |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | UV Protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |

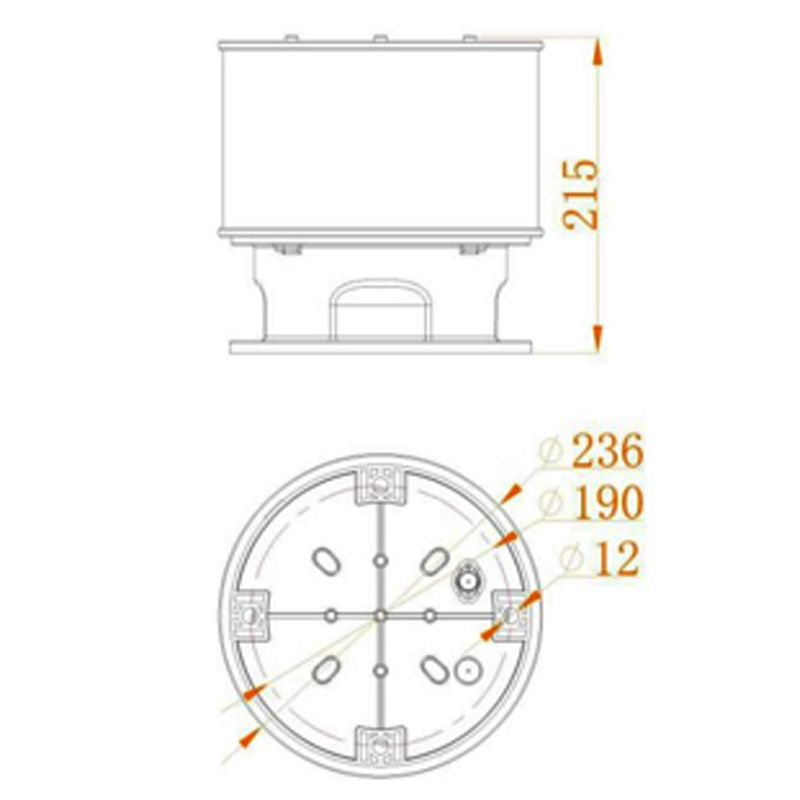

| Mounting | 190×190×θ12 |
| Dimension (mm) | 36×236×215 |
| Weight (kg) | 4 |
| Product Life Expectancy | 5 years Plus |
| Environmental Factors | |
| Humidity | 0%-100% |
| Wind Speed | 80m/s |
| Waterproof | IP66 |
| Compliance | |
| ICAO | Annex 14 Volume 1, ‘Aerodrome Design and Operations’ seventh edition 2022, table 6.3Medium-intensity Type A White Obstacle Light Medium-intensity Type B Red Obstacle Light |
| FAA | FAA L-865, L-864 |
| Options Available | |
| GPS sync flashing
Infrared LED compatible for NVG (Night Vision Goggles) Dry contact alarm output RS485 communication Bird deterrent spike |

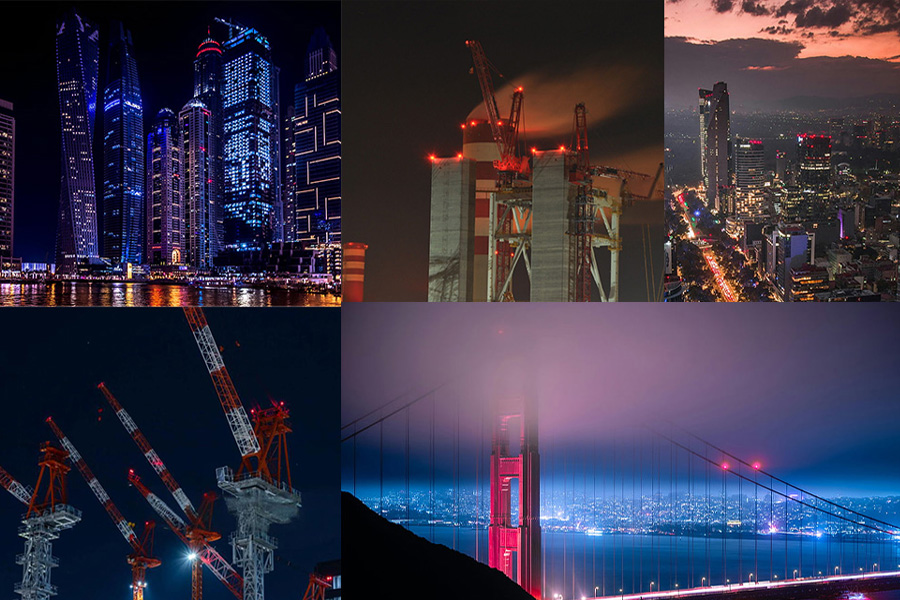

Applications YFFY-MI-BF LED Aviation Obstruction Light
The YFFY-MI-BF medium-intensity aviation obstruction light is suitable for:
- Communication & Telecom Towers
- Wind Turbines & Wind Farms
- High-Rise Buildings
- Industrial Chimneys
- Tower Cranes

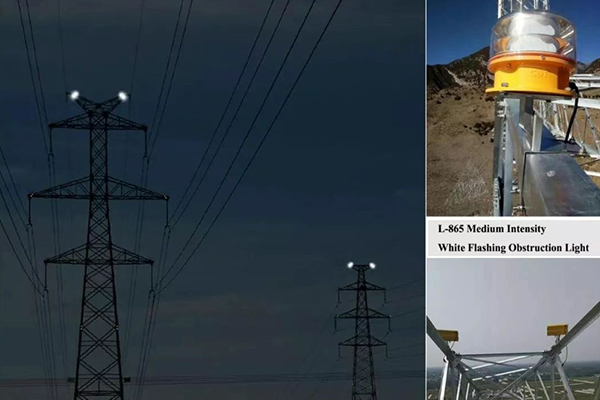

- Power Transmission Towers
- Bridges & Large Structures
- Port & Offshore Facilities
- Other Tall Aviation Obstacles
Why Choose YFFY-MI-BF Red and White Medium-intensity Aviation Obstruction Light?
- Red & White Dual-Color Operation: White flashing light is used during the day, while red flashing light is used at night for effective obstacle marking under different ambient conditions.
- Automatic Day/Night Switching: The built-in photocell automatically detects ambient brightness and switches between daytime and nighttime lighting modes.
- High-Intensity LED Optical System: High-efficiency LED technology provides stable light output, long service life, and lower maintenance requirements.
- 360° Visibility: The omnidirectional optical design provides 360° horizontal coverage for clear visibility from different flight directions.
- Reliable Outdoor Protection: The robust aluminum housing, PC optical cover, and integrated surge protection are designed for demanding outdoor environments.
- Project-Ready Customization: GPS synchronization, remote monitoring, alarm output, flashing frequency, and power supply options can be customized according to project requirements.
FAQ of YFFY-MI-BF LED Aviation Obstruction Light
1. What is a medium-intensity red and white medium-intensity aviation obstruction light?
A medium-intensity red and white aviation obstruction light uses white flashing light during the day and red flashing light at night to improve the visibility of tall structures to aircraft.
2. What structures use YFFY-MI-BF?
It can be used on communication towers, wind turbines, chimneys, high-rise buildings, tower cranes, bridges, power structures, and other tall obstacles.
3. Does YFFY-MI-BF switch between red and white automatically?
Yes. The built-in photocell can automatically detect ambient light and switch between daytime white and nighttime red operation.
4. Can the aviation light be synchronized?
Yes. GPS synchronization can be added for projects requiring multiple aviation obstruction lights to flash simultaneously.
5. What power supplies are available?
The product can be configured for different AC and DC power requirements depending on the project.
6. Can YFFY-MI-BF be customized?
Yes. YFFY Lights provides customization for flashing frequency, GPS synchronization, remote monitoring, alarm output, power supply, and mounting configurations.
