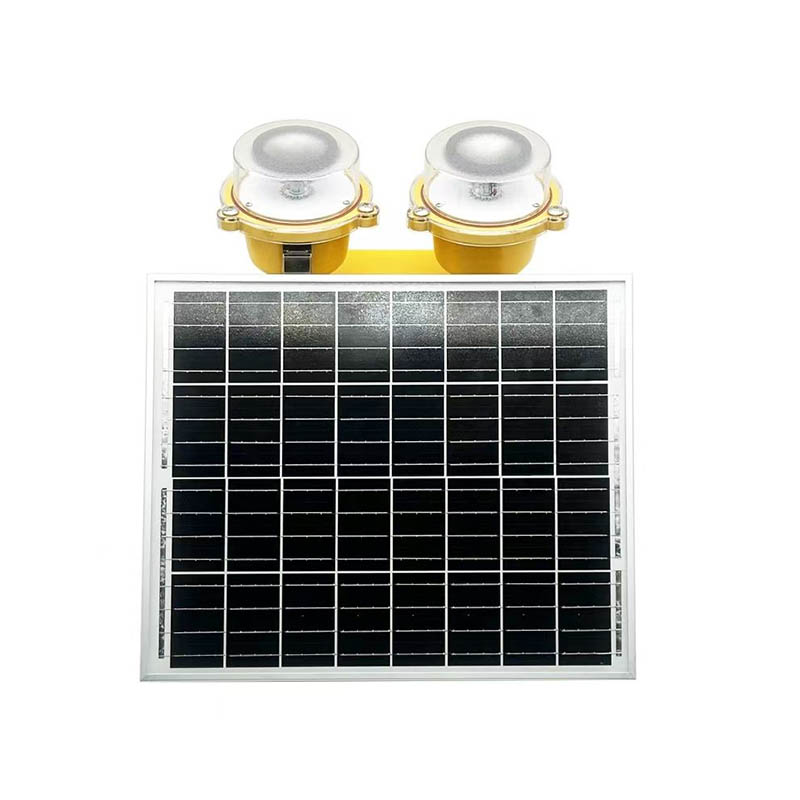

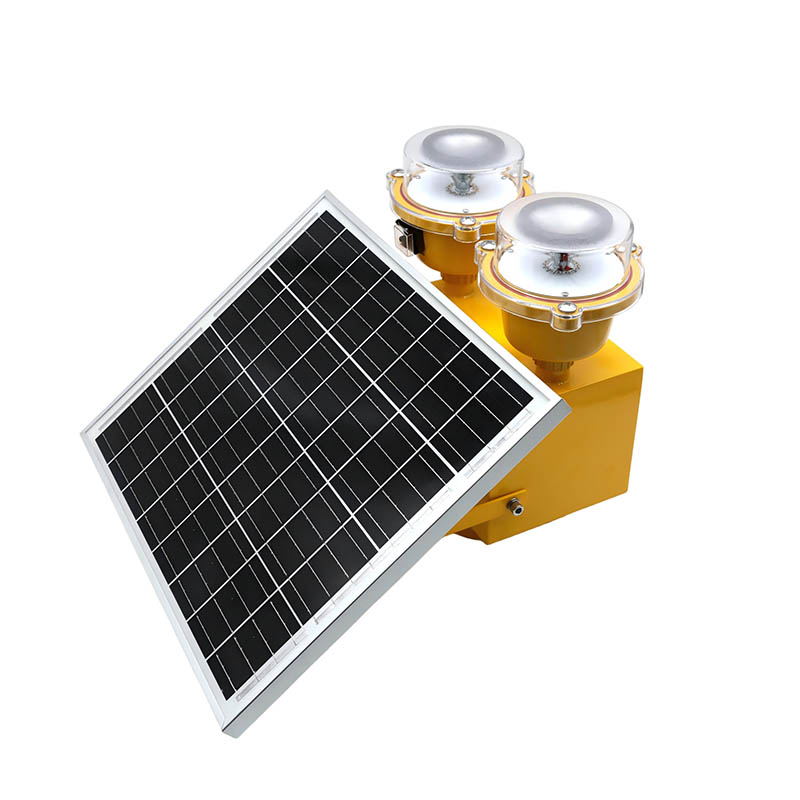

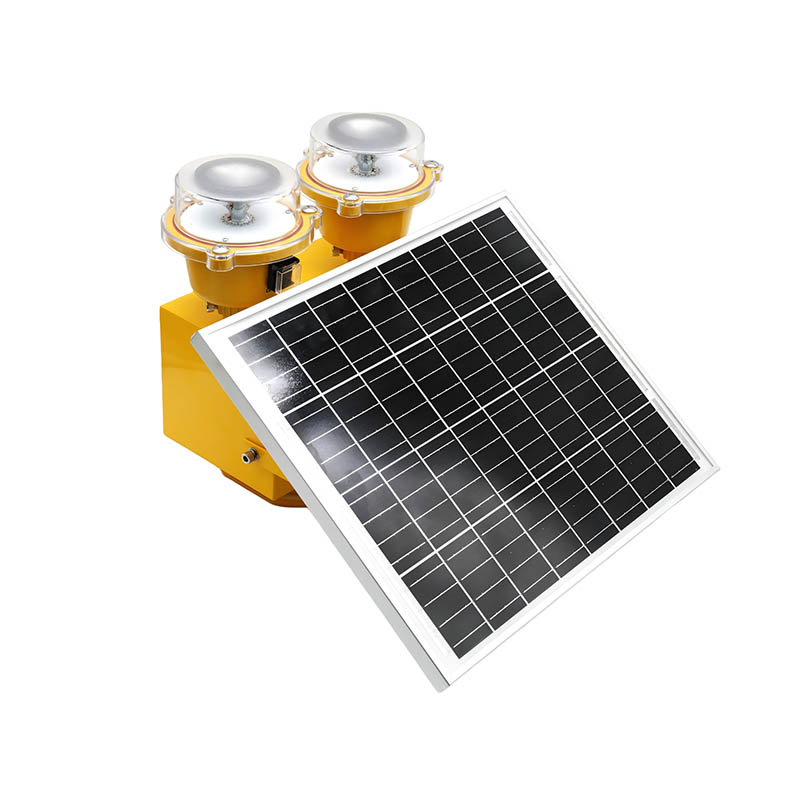

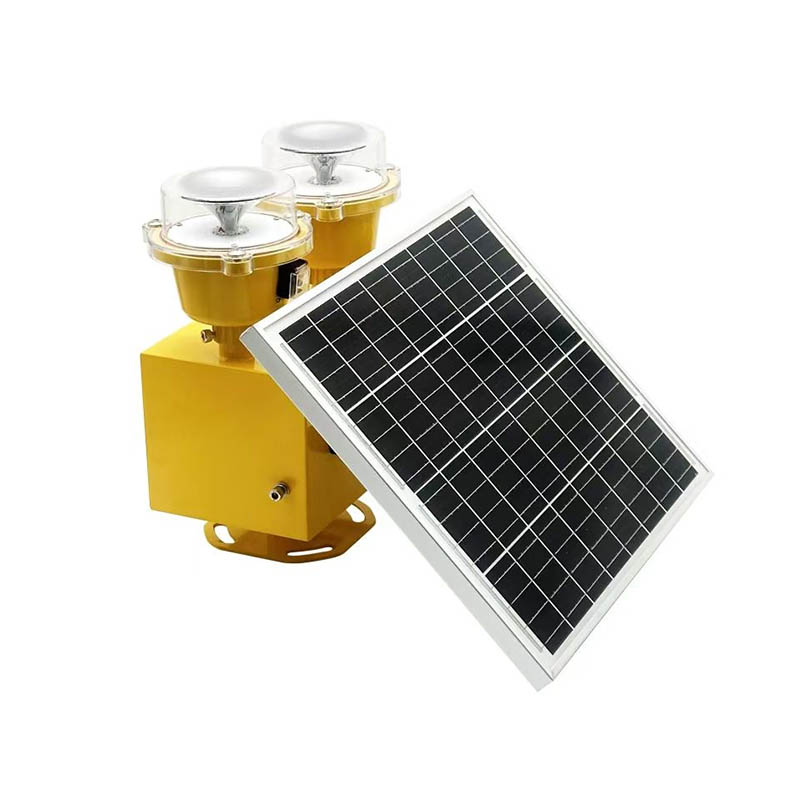

ICAO Type B Low-Intensity Dual Solar Aviation Obstruction Light YFFY-LB-01(L)
Solar-Powered Dual Solar Aviation Obstruction Light for Towers, Buildings and Other Aviation Obstacles
The YFFY-LB-01(L) dual solar aviation obstruction light is designed for structures that require reliable nighttime aviation marking.
Its high-efficiency LED optical system provides consistent aviation red light with 360° horizontal coverage and an effective intensity of 32.5 cd. The dual-light configuration provides an additional level of operational reliability: if the primary light fails, the standby light switches on automatically.
The lighting system is powered by a 10 W solar panel and 12.8 V / 14 Ah battery, eliminating the need for a conventional AC power connection. An integrated battery management system helps protect the battery and extend its service life.
The housing is manufactured from aviation-grade aluminum alloy and incorporates an optical PC lens. With IP65 protection, 3 kA surge protection and a -40°C to +55°C operating temperature range, the light is suitable for exposed outdoor installations and demanding environmental conditions.

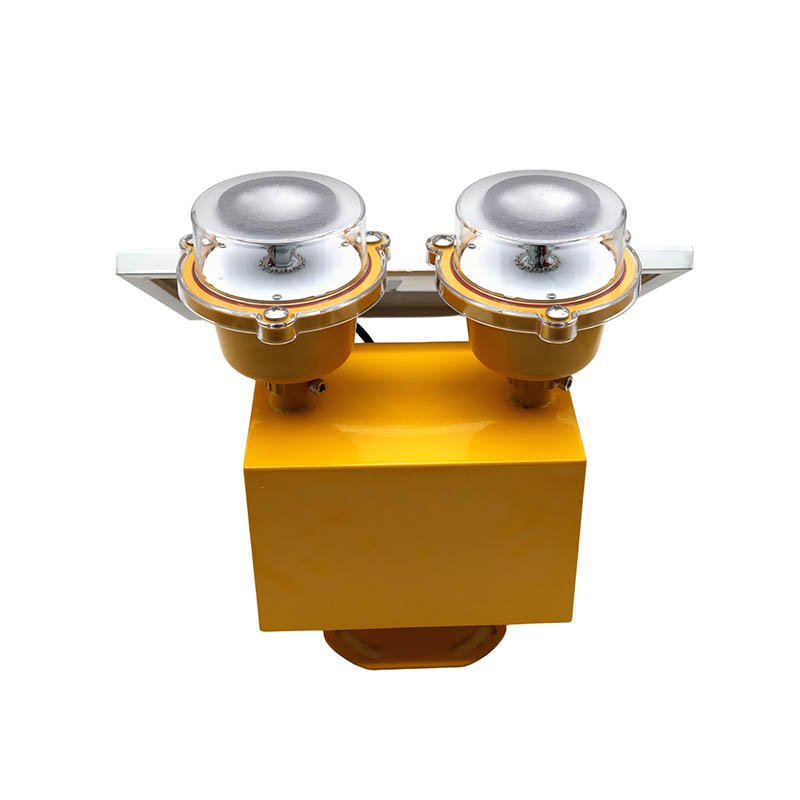

Dual-Light Reliability
The YFFY-LB-01(L) uses a primary + standby light configuration. When the primary light is detected as faulty, the system automatically switches to the standby light to maintain obstruction marking.
Solar-Powered Operation
The integrated solar power system combines a 10 W solar panel with a 12.8 V / 14 Ah battery, providing an independent power source for locations where grid power is unavailable or difficult to install.
Rugged Outdoor Construction
The aviation aluminum housing, optical PC lens and IP65-rated construction provide protection against rain, dust and other outdoor environmental conditions. The system is also designed to withstand high wind loads and solar radiation.
Key Features
- Dual Light with Automatic Standby Switching: Primary and standby LED light sources provide an additional layer of operational reliability. The standby light activates automatically if the primary light fails.
- Solar-Powered and Grid-Independent: A 10 W solar panel and 12.8 V / 14 Ah battery provide an independent power solution for remote towers and structures without convenient access to grid power.
- ICAO Type B Low-Intensity Light: Designed for low-intensity aviation obstruction marking applications with an effective nighttime intensity of 32.5 cd.
- 360° Horizontal Visibility: The optical system provides full 360° horizontal coverage for consistent visibility around the protected structure.
- Long-Life LED Technology: High-efficiency SMT LED technology delivers low power consumption and a rated light-source lifetime of ≥200,000 hours.
- Built for Harsh Outdoor Environments: Aviation-grade aluminum housing, IP65 protection, 3 kA surge protection and a -40°C to +55°C operating temperature range support reliable outdoor operation.
Applicable Standards
| CAAC | MH/T 6012-2015 and AC-137-CA-2017 | Aviation obstruction light |
| ICAO | ICAO Annex 14 Volume I The 8th Edition | Airport design and operation |
| FAA | Advisory Circular 150/5345-43J | Specification for Obstruction Lighting Equipment |
Technical Specifications of YFFY-LB-01(L) Dual Solar Aviation Obstruction Light
| Model | YFFY-LB-01(L) | Vertical Divergence | >10° |
| Power supply | Solar power supply | Horizontal Out-put | 360° |
| Power frequency | DC supply | Overall Size | 300*292*320mm (L*W*H) |
| Average power | ≤2.6W | Installation size | Φ145mm*3*M8 |
| Solar panel power | 10W | Battery power | 12.8V14AH |
| Working mode | Steady Light | Ambient Temperature | -40℃~+55℃ |
| Emitted color | Red | Weight | ≈3.2KG |
| Light source | LED | Wind load | 240km/h |
| Shell material | Aviation-dedicated aluminum alloy | Luminous mirror material | optical PC |
| Light source lifespan | ≥200000h | Protection grade | IP65 |
| Surge protection grade | 3KA | Relative humidity | 0%~95% |
| Get wet in the rain | Can be exposed to rain in any wind direction | Salt spray | Can be exposed to salt spray |
| Radiation | Can be exposed to solar radiation | Insulation characteristic | / |
| Seismic resistance | 10~500Hz,2G 10min/cycle, XYZ 60 minutes for each axis | EMC standards | Emitted:EN55022(CISPR22) class A harmonic wave:EN61000-3-2,-3 |
| Mean Time Between Failure | ≥200000h,MIL-HDBK-217F(25℃) | Altitude | ≥5000m |
| Effective intensity | night:32.5cd | ||
| Photocell stage | 50/100Lux | ||

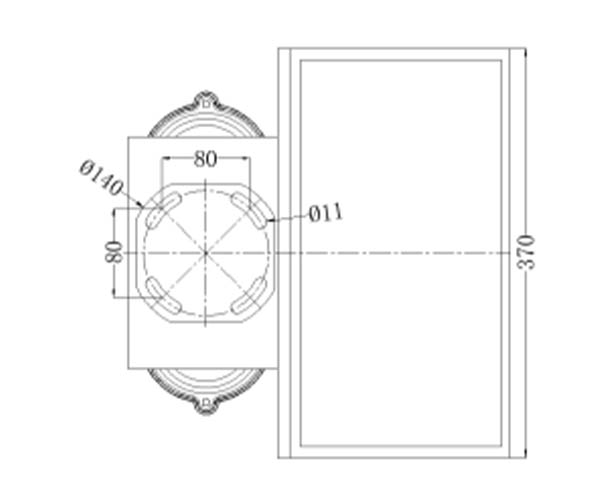

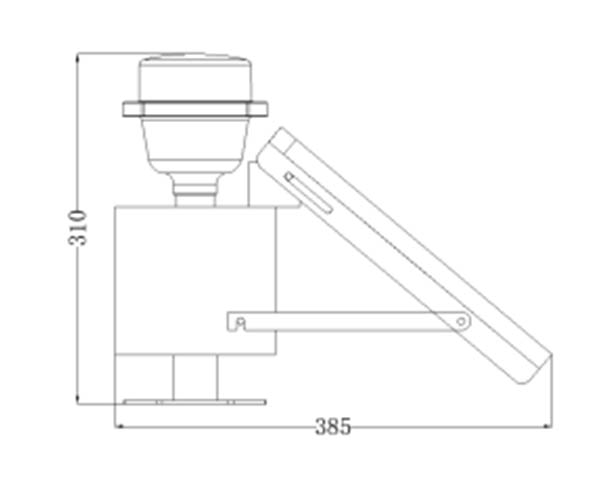

Drawing Dimensions
Applications
The YFFY-LB-01(L) is suitable for marking structures that may present an aviation hazard at night, including:
- Communication Towers
- Telecommunication Towers
- High-Rise Buildings
- Chimneys and Industrial Structures
- Transmission Towers
- Bridges and Elevated Structures
- Wind Turbine Structures
- Tower Cranes
- Remote Infrastructure
- Other Vertical Obstacles
The solar-powered design is particularly suitable for remote and off-grid installations where conventional electrical power is unavailable or costly to install.
Why Choose YFFY-LB-01(L) Dual Solar Aviation Obstruction Light?
- Reliable Dual-Light Design: Automatic switching from the primary light to the standby light helps maintain continuous obstruction marking.
- Independent Solar Power: The integrated solar system eliminates the need for external grid power, reducing installation complexity for remote locations.
- Long-Term LED Performance: High-efficiency LED technology provides low power consumption and a rated lifetime of ≥200,000 hours.
- Rugged Aviation-Grade Housing: The aluminum alloy housing is designed for demanding outdoor environments and high wind exposure.
- Global Project Support: YFFY Lights provides product datasheets, technical specifications, compliance documentation and engineering support for international aviation lighting projects.
- Factory-Direct Supply: OEM/ODM customization, project-based pricing and direct technical communication are available for distributors, contractors and engineering companies.
Get a Factory-Direct Quote & Technical Support Within 12 Hours
Frequently Asked Questions of YFFY-LB-01(L) Dual Solar Aviation Obstruction Light
1. What is the YFFY-LB-01(L) aviation obstruction light used for?
The YFFY-LB-01(L) is a low-intensity Type B solar aviation obstruction light designed to mark fixed structures that may present a hazard to aircraft at night. Typical applications include communication towers, buildings, chimneys, bridges, high poles, transmission towers and other elevated structures.
2. What is the difference between Type A and Type B low-intensity obstruction lights?
Both Type A and Type B are low-intensity lights for marking fixed obstacles. The main difference is the required light intensity. Type B provides approximately 32 cd of red steady light at night, while Type A is typically specified at approximately 10 cd. The appropriate light type should be selected according to the applicable aviation regulations and project requirements.
3. Why does the YFFY-LB-01(L) use a dual-light configuration?
The dual-light design provides additional operational redundancy. If the primary LED light fails, the standby light can automatically take over, helping maintain the required aviation warning signal and reducing the risk of an unmarked obstacle.
4. Is the YFFY-LB-01(L) completely solar powered?
Yes. The YFFY-LB-01(L) uses an independent solar power system consisting of a 10 W solar panel and 12.8 V / 14 Ah LiFePO₄ battery. It does not require a conventional AC power connection, making it suitable for remote and off-grid installations.
5. What is the light intensity and coverage of the YFFY-LB-01(L)?
The YFFY-LB-01(L) provides an effective nighttime intensity of approximately 32.5 cd, with 360° horizontal light coverage and a vertical divergence of more than 10°. The actual visibility of an obstruction light also depends on installation height, atmospheric conditions, background lighting and site requirements.
6. Can the YFFY-LB-01(L) be used in harsh outdoor environments?
Yes. The light features an aviation-grade aluminum housing, optical PC lens and IP65 protection. It is designed to operate from -40°C to +55°C and withstand wind speeds of up to 240 km/h, making it suitable for exposed outdoor installations.
7. What standards does the YFFY-LB-01(L) comply with?
The YFFY-LB-01(L) can be designed and supplied according to applicable aviation obstruction-lighting requirements, including ICAO Annex 14, FAA AC 150/5345-43 and relevant CAAC standards, depending on the project and market. YFFY Lights can provide applicable technical and compliance documentation for project evaluation upon request.
8. Can YFFY Lights provide a datasheet and quotation for a project?
Yes. YFFY Lights provides product datasheets, technical specifications, compliance documents and project quotations for distributors, contractors, engineering companies and end users. Contact our team with the structure height, installation location and required quantity for a suitable lighting solution and quotation.
