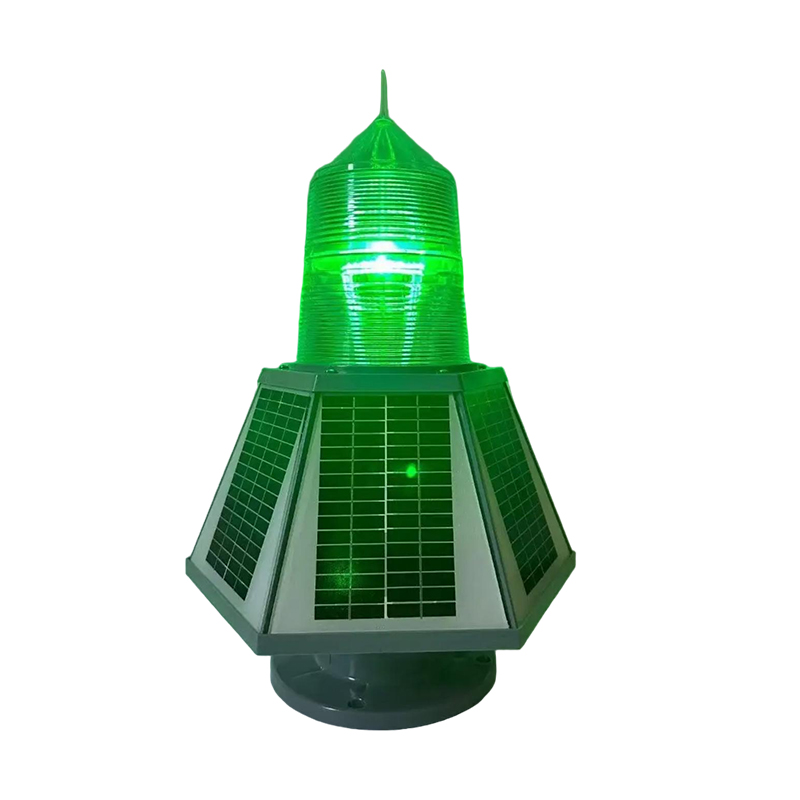

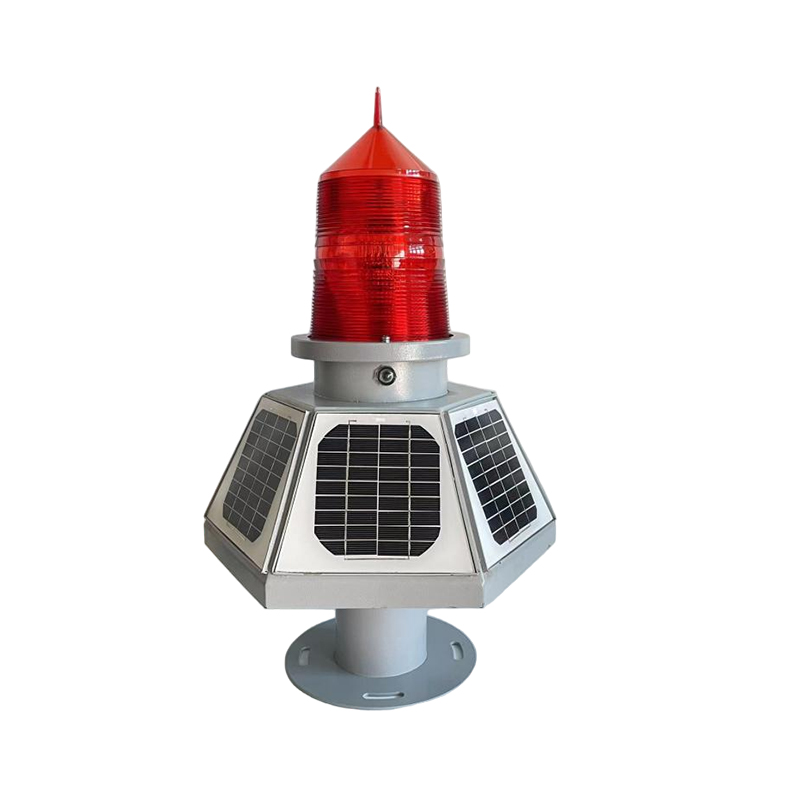

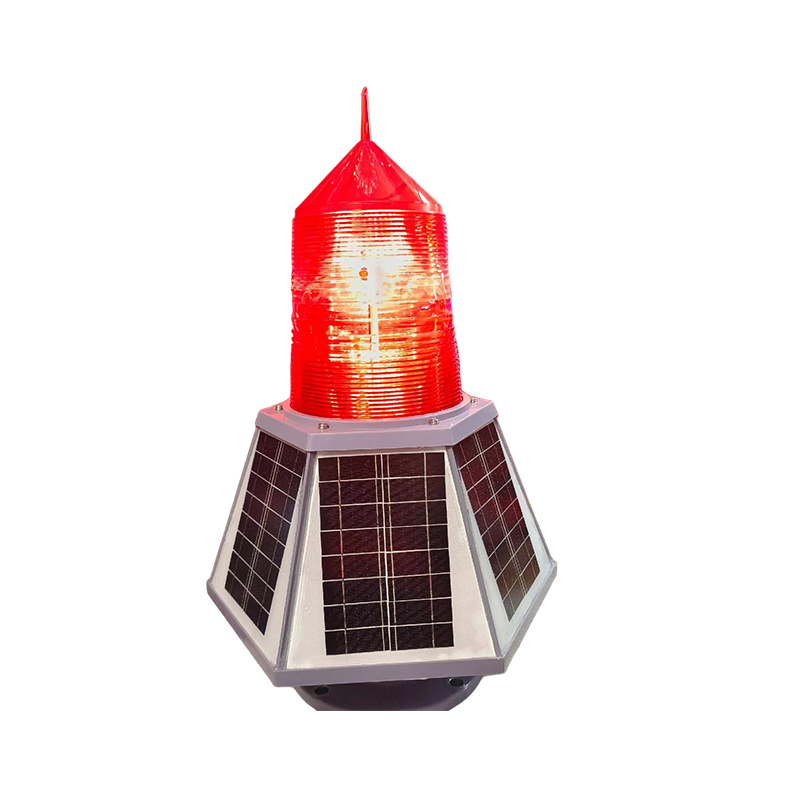

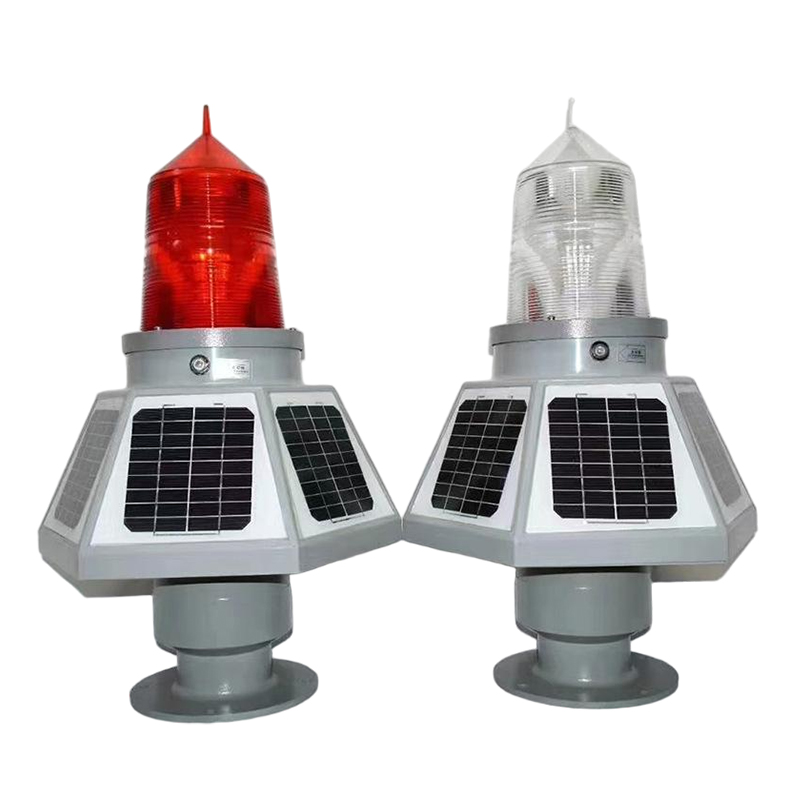

6NM Integrated Solar Marine Lantern YFFY-THD-155
Engineered by YFFY Lights, the YFFY-THD-155 Integrated Solar Marine Lantern delivers reliable, maintenance-free marine navigation lighting for ports, waterways, offshore structures, and coastal infrastructure. Combining high-efficiency solar technology with intelligent electronic control, the lantern provides dependable 360° illumination with a nominal range of up to 6 nautical miles, ensuring safe navigation in challenging marine environments.
Built with a heavy-duty 304 stainless steel housing and premium weather-resistant materials, the THD-155 is designed to withstand corrosion, salt spray, UV exposure, and extreme weather conditions. Its six-sided monocrystalline solar charging system maximizes energy collection throughout the day, while the integrated long-life battery and intelligent power management system ensure consistent performance during extended periods of low sunlight.
Whether installed on navigation buoys, channel markers, bridge structures, offshore platforms, or aquaculture facilities, the THD-155 provides a dependable, cost-effective marine lighting solution with minimal maintenance requirements. Optional GPS synchronization and remote monitoring functions allow seamless integration into modern marine aids-to-navigation (AtoN) systems.
Key Features
- Integrated Solar-Powered Design – Self-contained system requiring no external power.
- Six-Sided Solar Charging – Six monocrystalline solar panels ensure efficient charging from all directions.
- Marine-Grade Stainless Steel Housing – 304 stainless steel construction with superior corrosion resistance.
- Automatic Dusk-to-Dawn Operation – Intelligent microprocessor enables automatic day/night switching.
- 360° Omnidirectional Visibility – Provides reliable all-around navigation signaling.
- Moisture-Protected Electronics – Sealed circuitry for dependable operation in harsh marine environments.
- Long Autonomous Operation – Up to 15 days of operation during continuous cloudy or rainy weather.
- Maintenance-Free Battery System – Fully sealed battery requires minimal maintenance.
- Optional GPS Synchronization – Wireless synchronized flashing for multiple navigation aids.
- Remote Monitoring Ready – Optional RTU and BeiDou (BD) modules for real-time status monitoring.
TECHNICAL SPECIFICATION
| Parameter | Specification |
| Model | YFFY-THD-155 Integrated Solar Marine Lantern |
| Light Source | High-Brightness LED (Cold Light Source) |
| Nominal Visible Range | Up to 6 Nautical Miles (T = 0.75) |
| LED Colors | Red / Green / Yellow / White / Blue |
| Power Consumption | 15 W |
| Battery | DC 12V 12Ah Maintenance-Free Sealed Lead-Acid Battery |
| Solar Module | 6 × 3W Monocrystalline Solar Panels (18V) |
| Horizontal Divergence | 360° |
| Flash Rate | 20–60 flashes per minute (programmable) |
| Ambient Light Sensitivity | 50–500 Lux |
| Operating Temperature | -45°C to +70°C |
| Operating Humidity | 10%–95% RH (Non-Condensing) |
| Wind Resistance | Up to 165 m/s |
| Ingress Protection | IP65 |
| LED Service Life | ≥120,000 hours |
| Autonomy | Up to 15 days without sunlight |
| Weight | Approx. 18 kg |
| Housing Material | Powder-Coated Stainless Steel Base |
| Lens Material | UV-Stabilized Polycarbonate (PC) |
| Synchronization | Optional GPS Wireless Flash Synchronization |
Application
The YFFY-THD-155 Integrated Solar Marine Lantern is engineered to provide dependable visual guidance and hazard marking across a wide range of marine and offshore environments. Its rugged construction, self-contained solar power system, and maintenance-free operation make it an ideal solution for both permanent and temporary aids to navigation.
Typical applications include:
- Bridges and Bridge Piers – Clearly mark bridge structures, navigation spans, and potential collision hazards to improve vessel safety during day and night operations.

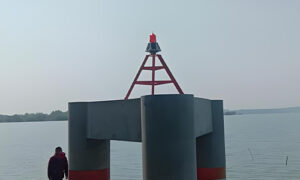

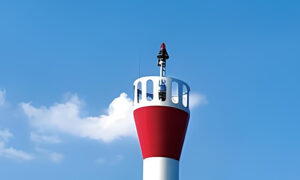

- Offshore Oil & Gas Platforms – Provide reliable visual warning for offshore platforms, wellheads, drilling rigs, and other marine energy infrastructure exposed to harsh environmental conditions.

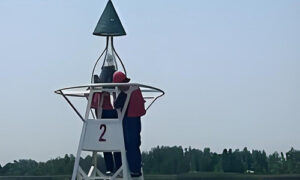

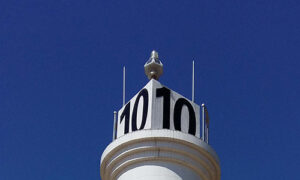

- Beacon Towers and Navigation Posts – Enhance the visibility of fixed navigation marks, leading lights, and coastal beacons to assist safe vessel routing.
- Navigation Channels and Fairways – Delineate shipping lanes, channel entrances, harbor approaches, and restricted waterways for accurate marine navigation.

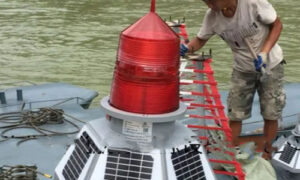

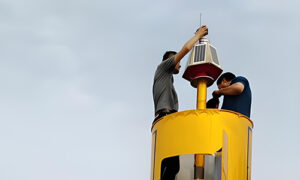

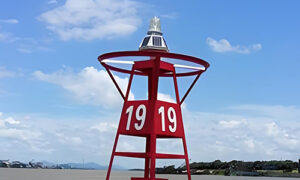

- Navigation Buoys and Floating Aids – Suitable for lateral buoys, cardinal buoys, special marks, mooring buoys, and other floating aids requiring dependable 360° illumination.

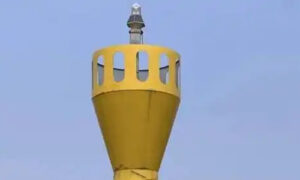

- Ports, Harbors, and Marinas – Improve navigational safety around docks, breakwaters, jetties, harbor entrances, and port facilities.
- Aquaculture and Fish Farming Facilities – Mark fish cages, aquaculture zones, offshore fish farms, and floating structures to help prevent vessel collisions and improve operational safety.

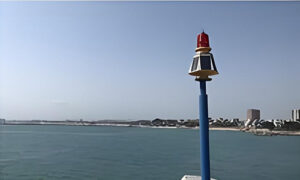

- Coastal Infrastructure – Ideal for seawalls, breakwaters, causeways, shoreline installations, and other fixed marine structures requiring long-term visual marking.
- General Marine Hazard Marking – Suitable for any marine or offshore location requiring reliable, solar-powered warning lights to enhance navigational safety and regulatory compliance.
Installation & Safety Notes
Before installing the YFFY-THD-155 Integrated Solar Marine Lantern, carefully read all installation instructions and verify that the selected mounting location meets the operational requirements of the application.
Install the lantern on a stable, level mounting surface using the recommended hardware to ensure maximum mechanical stability and optimum optical performance. Position the solar panels where they receive unobstructed sunlight throughout the day, avoiding shadows from nearby structures, vegetation, or equipment that could reduce charging efficiency.
Ensure the lantern is securely fastened and all mounting hardware is properly tightened before commissioning. If optional GPS synchronization or remote monitoring functions are installed, verify that all electrical connections and communication interfaces are correctly configured and protected against moisture ingress.
To maintain reliable long-term performance, periodically inspect the lantern for physical damage, clean the solar panels and lens with a soft cloth and fresh water to remove salt, dust, or other contaminants, and confirm that the mounting hardware remains secure. Avoid using abrasive materials or chemical solvents that may damage the optical lens or protective coatings.
If the lantern will be removed from service for an extended period, store it in a clean, dry, and well-ventilated environment away from excessive heat, corrosive chemicals, or prolonged moisture exposure.
For installation guidance, maintenance support, or technical assistance, please contact YFFY Lights or your authorized distributor.
Video of Solar Marine Lantern YFFY-THD-155
Frequently Asked Questions (FAQ)
1. What is the maximum visible range of the YFFY-THD-155 solar marine lantern?
The YFFY THD-155 provides a nominal visible range of up to 6 nautical miles (NM), depending on the selected LED intensity, flash characteristic, installation height, and local atmospheric conditions. It is designed for reliable marine navigation applications in accordance with IALA recommendations.
2. Is the YFFY-THD-155 solar marine lantern compliant with IALA standards?
Yes. The YFFY-THD-155 supports 366 IALA flash characteristics, making it suitable for a wide variety of marine aids to navigation (AtoN) applications. Flash patterns can be programmed using the optional infrared programmer to meet different navigation requirements.
3. Where can this solar marine lantern be installed?
The YFFY-THD-155 is suitable for numerous marine and offshore applications, including navigation buoys, channel markers, harbor entrances, bridge piers, offshore oil and gas platforms, aquaculture facilities, coastal structures, marinas, and other fixed or floating navigation aids.
4. Does the lantern require an external power supply?
No. The THD-155 is a fully integrated solar-powered marine lantern with built-in high-efficiency solar panels, rechargeable battery, intelligent controller, and LED light source. No external wiring or utility power is required, making installation simple and cost-effective.
5. How long can the lantern operate during cloudy weather?
The integrated rechargeable battery is designed to provide reliable operation for multiple consecutive days without sufficient sunlight. The actual autonomy depends on the selected flash pattern, operating intensity, geographical location, and local weather conditions.
6. Can multiple marine lanterns be synchronized?
Yes. Optional GPS synchronization enables multiple THD-155 marine lanterns to flash simultaneously, which is particularly useful for bridge lighting systems, channel navigation projects, port entrances, and other large-scale marine navigation installations.
7. Is the THD-155 solar marine lantern suitable for harsh marine environments?
Absolutely. The solar marine lantern features a marine-grade 304 stainless steel housing, UV-resistant materials, corrosion-resistant coatings, and a weatherproof design that withstands salt spray, heavy rain, strong winds, and prolonged exposure to coastal environments.
8. What maintenance is required?
Very little maintenance is required. Periodic cleaning of the solar panels and optical lens, along with routine inspection of the mounting hardware, is generally sufficient to maintain optimum performance. The integrated solar power system eliminates the need for frequent battery replacement or external electrical maintenance.
9. Can the flash characteristics be customized?
Yes. The THD-155 supports 366 programmable flash characteristics. Users can easily configure different flash patterns using the optional infrared programmer to meet regional navigation standards and project specifications.
10. Does YFFY Lights provide OEM or customized solutions?
Yes. YFFY Lights offers OEM and customized marine navigation lighting solutions, including customized flash characteristics, housing colors, battery capacity, communication options, GPS synchronization, remote monitoring, and other project-specific requirements for marine navigation systems worldwide.
