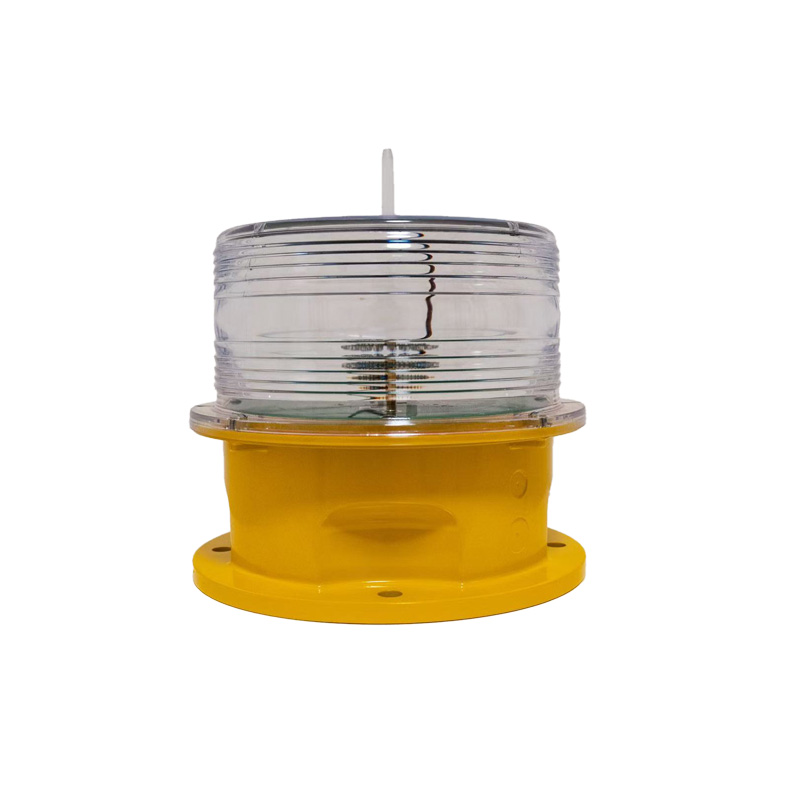

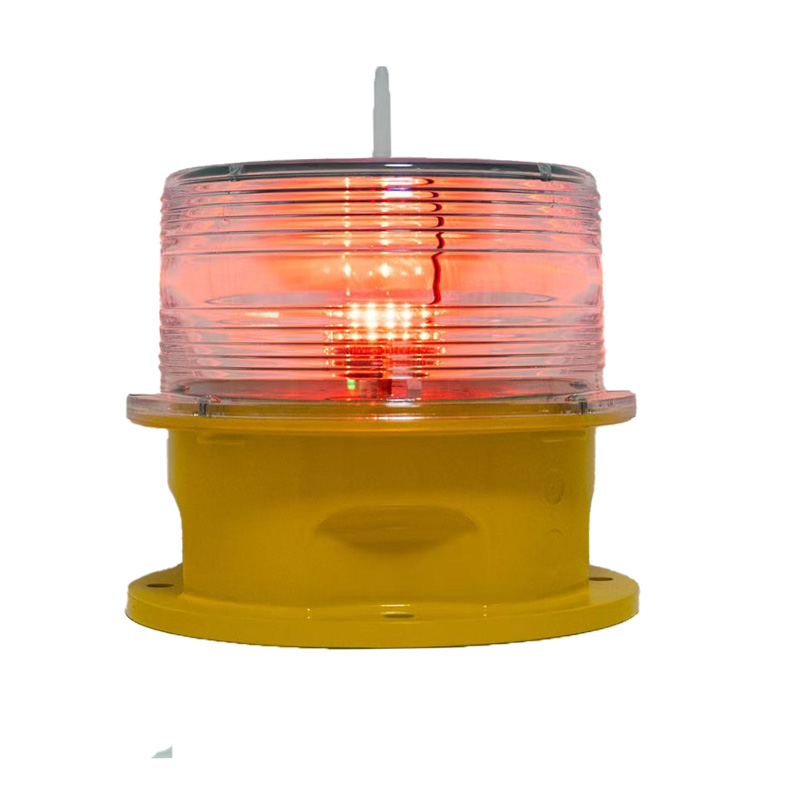

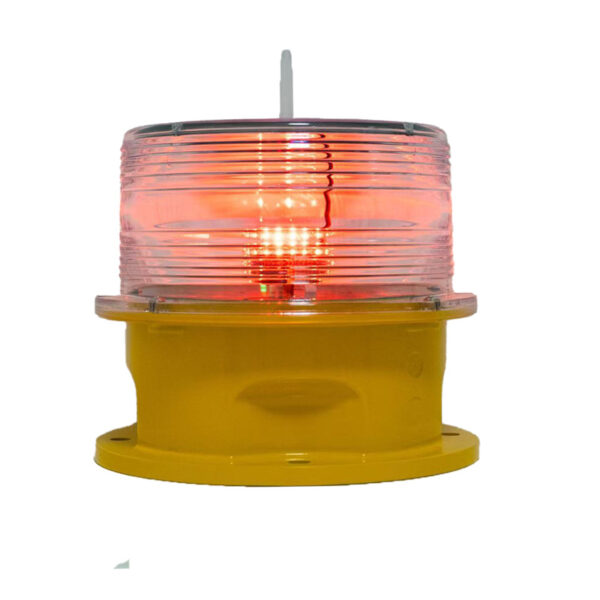

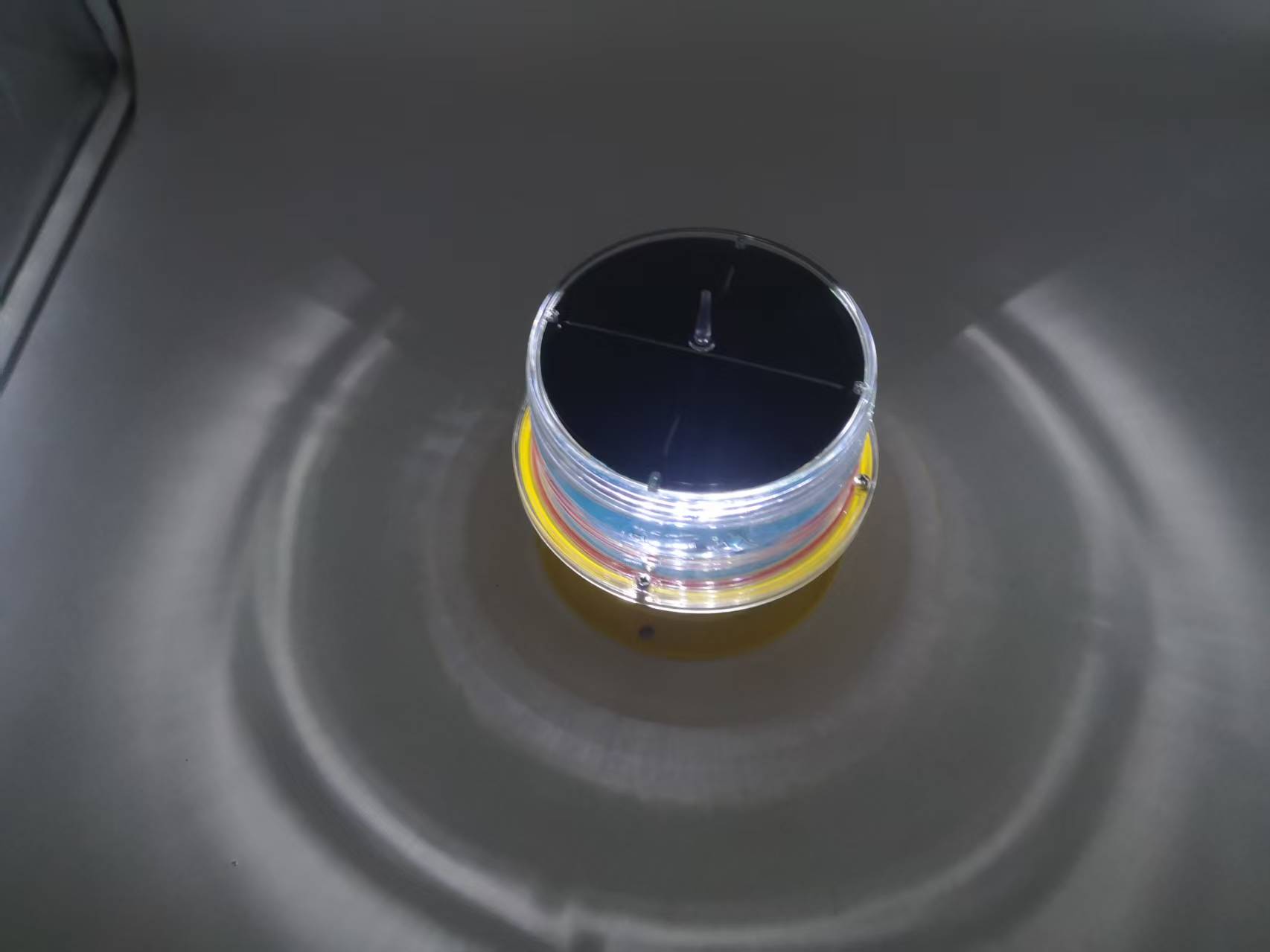

The solar powered warning lights is completely independent, with an integrated design of embedded high-efficiency solar panels and a solar-powered lithium-ion battery.
There are two rotary switches on the PCB board, and users can easily change the flashing characteristics of the light (meeting IALA 256 flashes)
Features of Solar Warning Lights
- LED technology reduces maintenance time and costs;
- This solar LED lights adopts an integrated design, is durable, completely waterproof, and can be immersed in depth for a long time (IP68);
- The PC shell is UV-resistant, shock-proof, and corrosion-resistant. There is a bird-avoiding rod;
- The lamp adopts a powder-coated die-cast aluminum base;

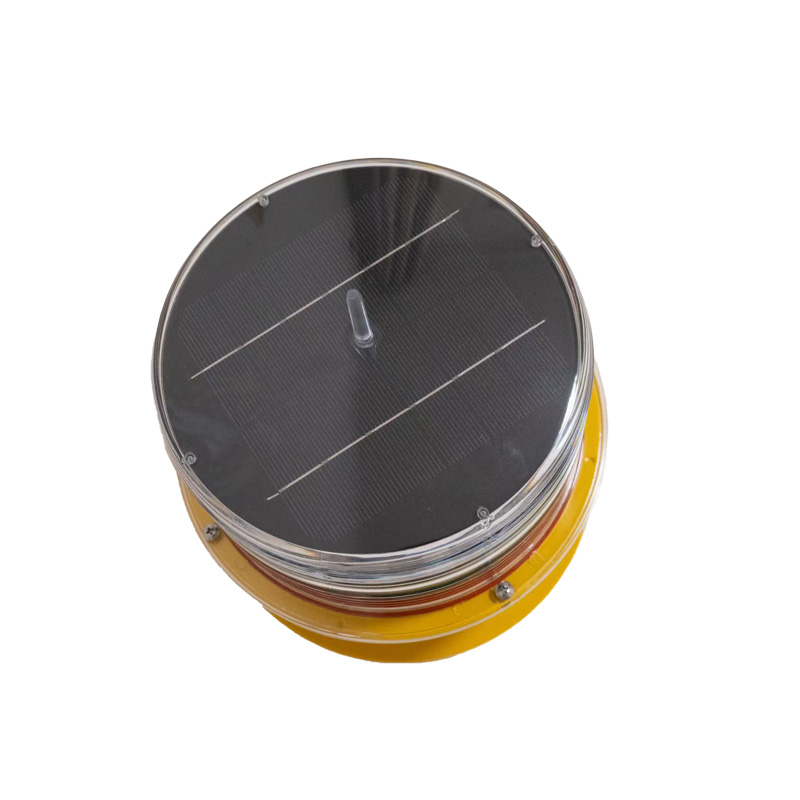

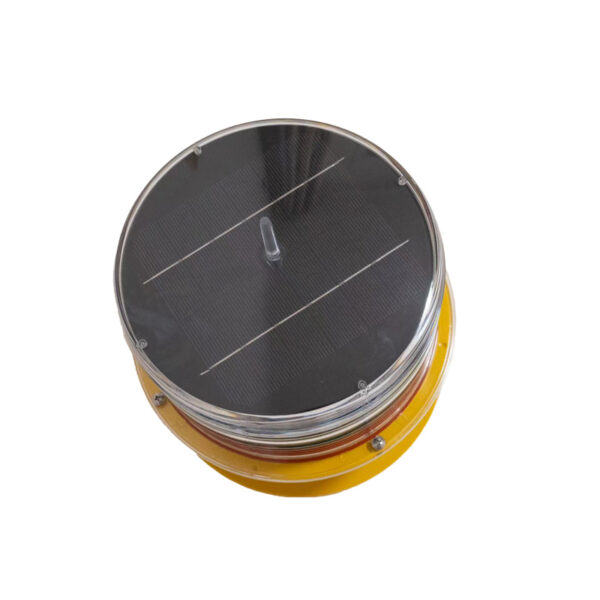

- Built-in monocrystalline silicon solar panel, the conversion efficiency is better than polycrystalline silicon
- The solar light has a built-in photoelectric tube and can operate day and night (dusk to dawn operation)
- Users can adjust the constant light/flash (20fpm) working mode
- The base of the solar obstacle warning light is equipped with a switch button interface
Parameters of Solar Powered Warning Lights

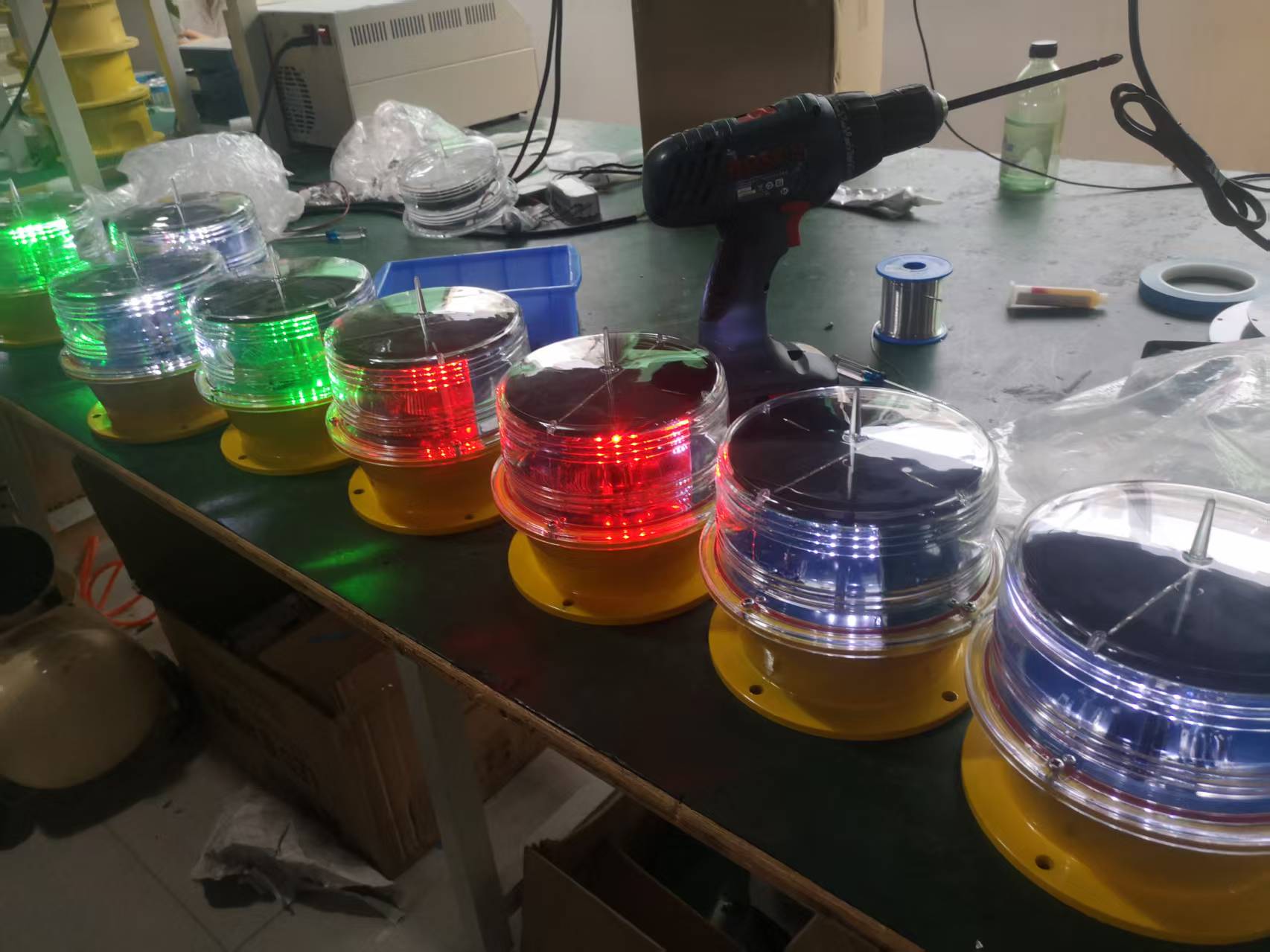

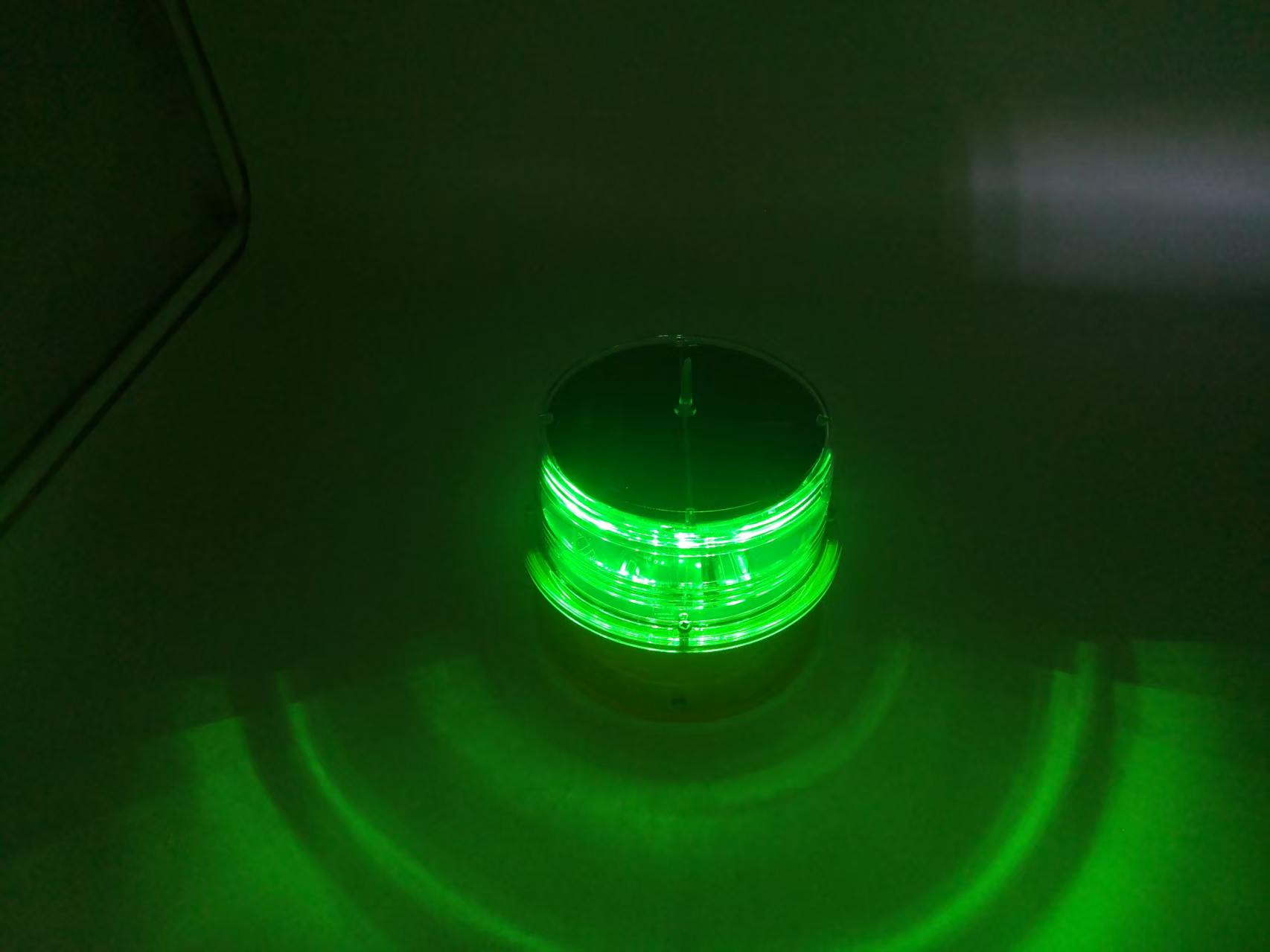

Model | YFFY-LS-C-1 Solar LED Warning Lights | Colors | Red, Green, Yellow, White, Blue |
Visible Range | 5.5-9KM 3-5NM (AT@0.74) | Horizontal Output(degrees) | 360 |

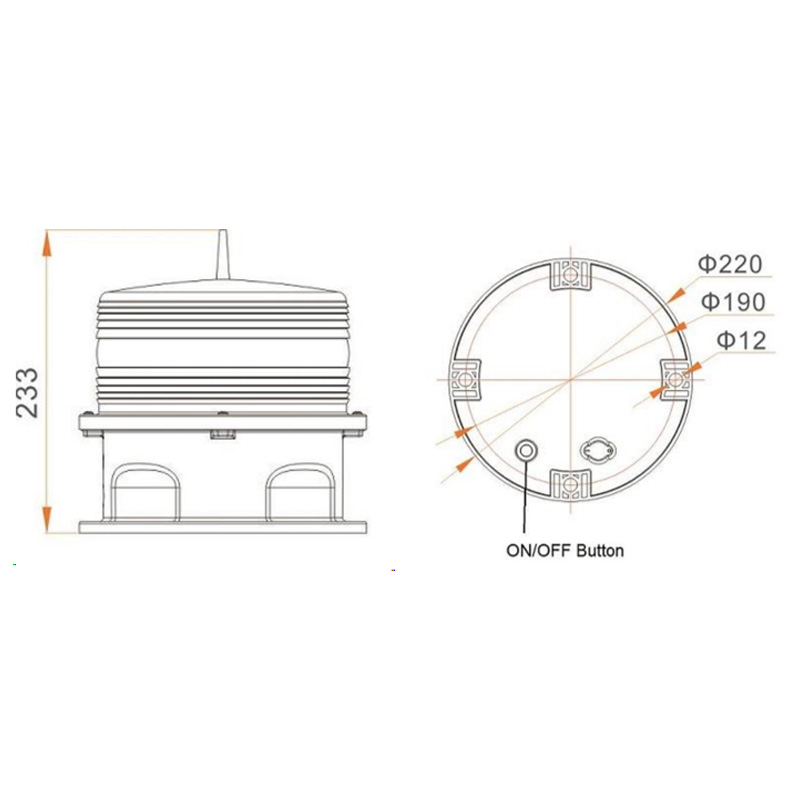

Base Material | Powder-coated Die-casting aluminum | Mounting(mm) | 190×190×Φ12 |
Flash Characteristics | Adjustable Steady/Flash mode | Operation Mode | Dusk-to-dawn Automatically (Built-in photocell) |
Dimension(mm) | 220×220×233 | Weight(kg) | 2.5 |
LED Life Experience(hours) | more than 100,000 | Operating Voltage | 3.7V DC |
Battery | 3.7V Lithium ion battery | Battery Service Life | Average 3 years |
Autonomy (hours) | Steady: 60 Flashing: 150 | Warranty | 2 Years |
Solar Lights Function Optional
- Rotary switch can adjust 256 flash characteristics, in line with IALA standards
- User adjustable working mode, can switch between dusk to dawn and 24-hour operation
- External charger
- Wireless remote control
- Bluetooth remote control; infrared remote control
- GSM monitoring
- RS232 485 interface
- GPS synchronous flashing
Application of Solar Powered Warning Lights
- LS/C-1 as solar navigation lights is suitable for buoys, lighthouses and other offshore locations to ensure safe navigation at sea/rivers.
- LS/C-1 as solar aviation lights can provide obstacle warnings for various towers, buildings, chimneys;
- LS/C-1 as solar airport lights is also widely used in aprons, runways, airport watchtowers, etc.
