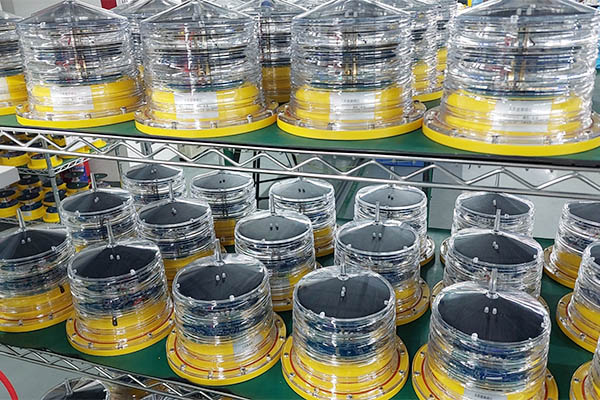

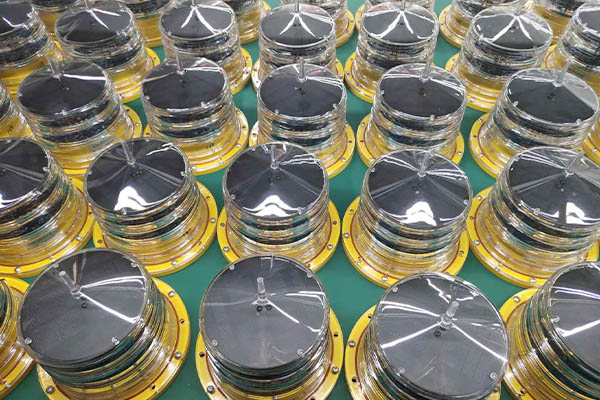

Low-intensity Solar Obstacle Light YFFY-LS/G
- Low-intensity solar obstacle light adopts marine-grade housing;
- 32.5cd, 5km visual distance;
- Still-on/flashing mode can be selected, working mode can be customized;
- Can be used continuously for 10-15 days on rainy days (fully charged);
- IP68, 2-year warranty.
Low-intensity Solar Obstacle Light YFFY-LS/G
Low-intensity solar obstacle light LS/G adopts a plug-in solar panel with a photoelectric conversion efficiency of up to 19%. It is an integrated design and is powered by a special lithium iron phosphate battery for solar energy.
The control circuit adopts a micro-power single-chip control chip, which can more accurately control the charge and discharge state of the battery and reduce the power consumption of the control circuit.
The light source of solar warning lights adopts a specially customized LED chip, which has the characteristics of high light intensity, low power consumption and long life. The lampshade is made of PC material, which is corrosion-resistant, UV-resistant and impact-resistant.
The base of low-intensity solar obstacle light is made of marine-grade special plastic material, which can be used in waterways, bridges, chemical plants, etc. in harsh and highly corrosive environments.
Functions & Features of LED Solar Obstrution Lights
- The continuous working time on rainy days can reach more 10~15 days (12 hours a day).
- The solar obstacle warning light can automatically turn on/off the light on rainy days or at night.
- The integrated waterproof design can work in seawater, with a high protection level of up to IP67.
- The conversion efficiency and service life of the specially customized LED chip are higher than those of ordinary Leds.
- The circuit adopts an advanced charge and discharge management system to effectively extend the battery life.
- The solar lights has a time delay switch, and the working mode can be adjusted to be constant or flashing as needed.
- Solar Led obstruction lights with bird protection device.
- No radio frequency (RF), no electromagnetic interference.
- Stable operation, low cost.
Parameters of Low-intensity Solar Obstacle Light
| Name | Parameter | Name | Parameter |
| Model | YFFY-LS/G Solar Aviation Obstruction Lights | Light Source Life | ＞100000 hours |
| Power Provider | Mono-crystalline silicon solar panel | Optional Emitting Light Colors | Red |
| Battery Capacity | 3.2V4AH | Battery Type | Replaceable lithium iron phosphate battery |
| Battery Lifespan | ＞5years | Solar Panel Voltage | 5.5V |
| Solar panel Power Consumption | 2W | Solar Panel Lifespan | ＞20years |
| Power Consumption | ≤2W | Vertical Divergence | ＞10° |
| Visual Distance | 5km | Horizontal Out-put | 360° |
| FAA Classify | L810 | Overall Size(mm) | 186mm(D)x190mm(H) |
| Light Source | LED | Installation Size(mm) | D170mmxM6 |
| Working Temperature | -40℃~70℃ | Wind-speed Ability | 80m/s |
| Storage Temperature | -40℃～70℃ | Working Mode | Flashing (20times/min) |
| Sun Switch Illumination Threshold | 300LUX±100LUX | Steady Burning Intensity | 32.5cd |
| Continuous Burning Time in Rainy Days | ＞15 days
(12 hours/day) |
Flashing Intensity | 32.5cd |
| Weight | 1.2kg | IP Protection | IP67 |

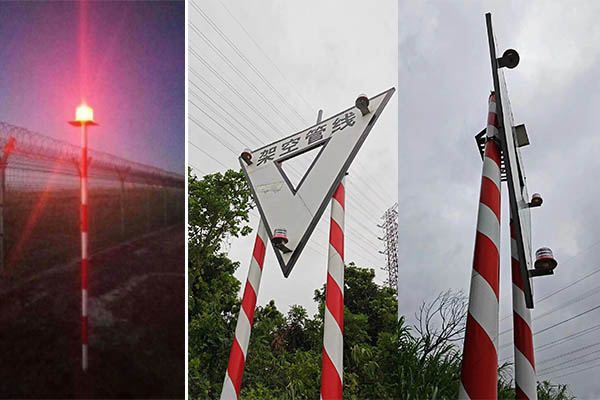

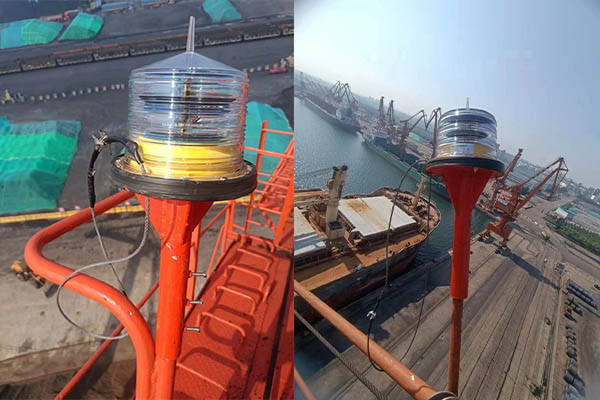

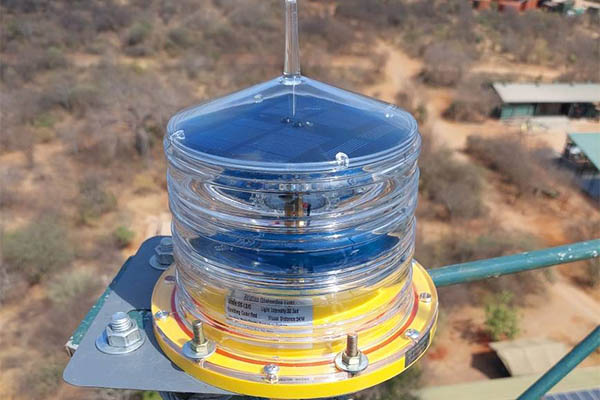

Applications of Solar Obstacle Lights
- Blocks
- Building
- Bridges
- Towers

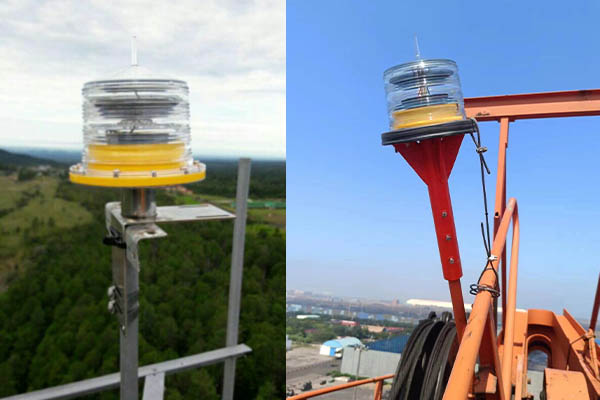

- Communication towers
- Chimneys

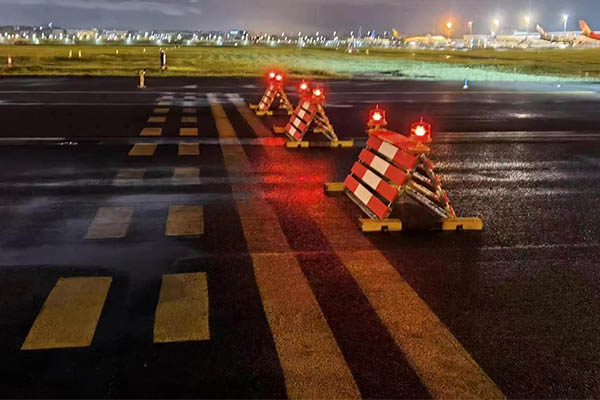

- Runways
- Heliports
- Traffic guardrails
- Tower cranes
| FAA Classify | L810 |
|---|---|
| Visual Distance | 5km |
| Working Mode | Flashing (20times/min) |
| Intensity | 32.5cd |
| Overall Size(mm) | 186mm(D)x190mm(H) |
| Working Temperature | -40℃~70℃ |
| Working Time in Rainy Days | 10~15 days (12 hours/day) |
| Warranty | 2 Years |
