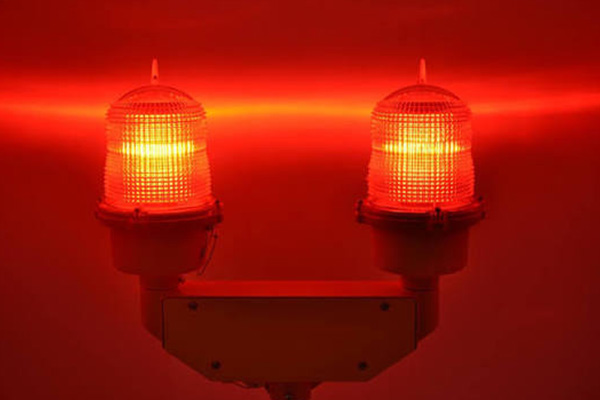

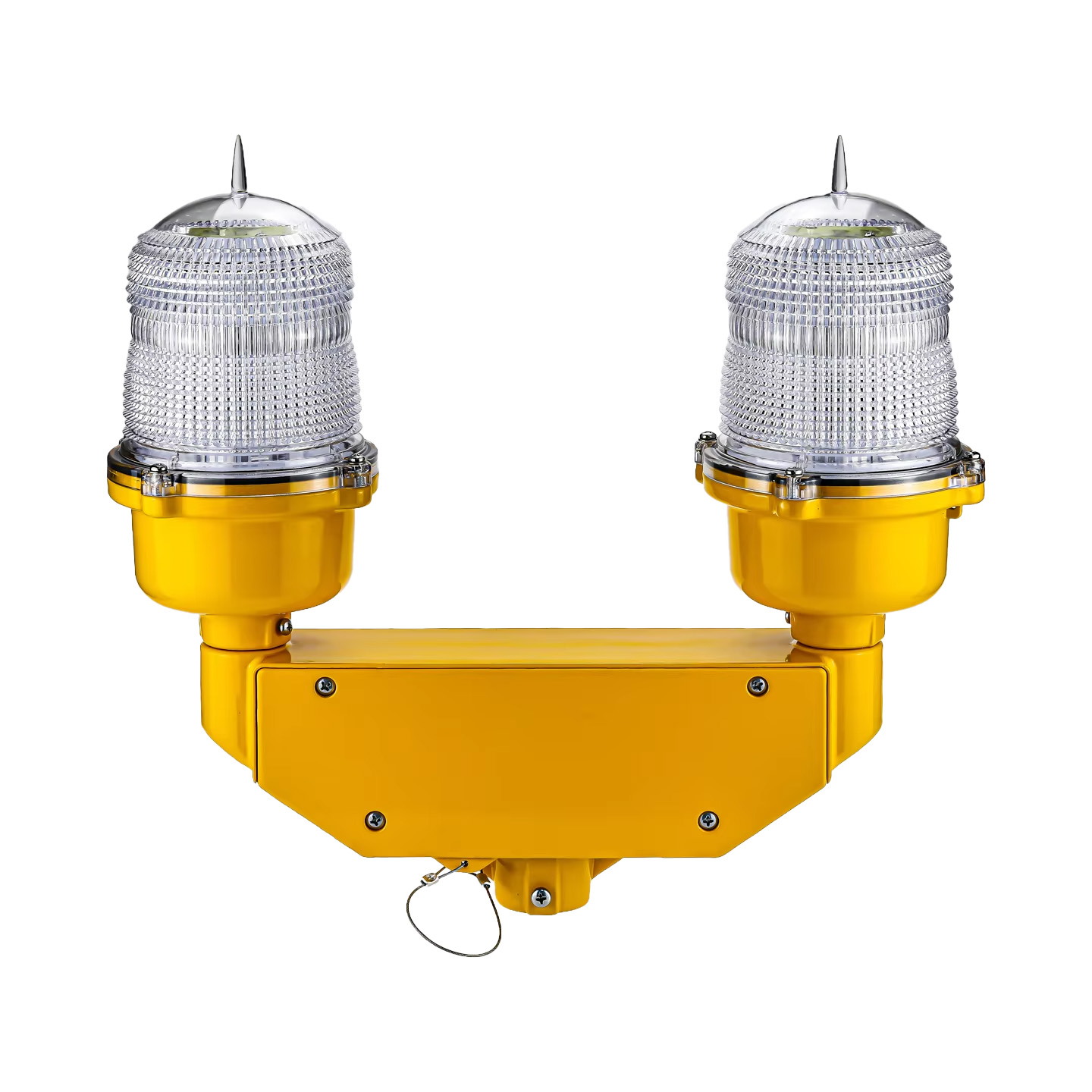

Double Obstruction Light YFFY-DL10D

  1. Double obstruction light, low-intensity Type A aviation obstruction light;
  2. With dry contact alarm, it will sound an alarm when power and light fail;
  3. Customizable AC, DC / Steady-on or flashing mode;
  4. With GPS function, it can work synchronously with other lights (optional)
  5. With 5 years warranty.

Double obstruction light DL10 series of are usually standard LED aviation obstruction warning lights, designed to mark any obstacles that may be dangerous to aircraft navigation.

It is made of die-cast aluminum alloy housing and polycarbonate dome, and complies with ICAO regulations, low-intensity type A aviation obstruction lights.

Features & Benefits of Aviation Lights

  • Customizable for both AC and DC conditions / steady-on or flashing mode.
  • Multiple light elements in the source reduce the chances of a complete blackout which could be caused in case of a single source failure.
  • All hardware of LED obstruction lights are made of corrosion resistant metals.
  • Built in photocell, which can switch ON/OFF the lights automatically at dawn & dusk ( optional )
  • This double obstruction light use of quality components and sophisticated technology reduce chances of maintenance and replacement.
  • This  Low-intensity obstruction lights with low power consumption, which leads to huge savings on electricity bills.
  • LED light source ensures long lifetime, maintenance free
  • Built-in anti electrophoresis impact module, with lightning / surge protection
  • This LED obstruction warning lights resistant to shock & vibration.
  • No RF Radiations, EMC Compliant.
  • Reversed Polarity Protected(DC Type)
  • Corrosion resistant lamp & housing-suitable for off-shore use
  • The aviation obstruction light bottom cable entry-ease of mount, mount accessories available
  • Self-contained compartment-eliminates additional box
  • Flashing rate adjustable
  • With dry contact alarm, it will give an alarm in case of power and light failure
  • This LED warning lights available both in single and double obstrucgtion light type
  • This aviation obstruction lights with 5 years warranty
  • This LED aviation obstacle light with GPS function, can work with other lights synchronously (optional).

Parameters of Double Obstruction Light

LIGHT OUT-PUT
DL10S (Single)
DL10DST (Double)
DL10DSS (Double)
Effective Intensity
10 Candela
10 Candela
10 Candela
Vertical Divergence
10 Degree
Horizontal Out-put
360 Degree
LED Color
Red/yellow/green/white/blue
LED Lifespan
100,000 Hours
Flash Pattern
Steady burning (default) / flashing type
Input Voltage
110-220VAC, 50/60 Hz;12VDC;24VDC;48VDC;
Frequency
50Hz ~ 60Hz
Lens
Polycarbonate, UV Stabilize
Body
Die-casting Aluminum
Water-proof
IP65
Weight
0.9KG
3.5KG
3.5KG
Dimensions
159mm x 245mm
340mm x 413mm x 140mm
340mm x 413mm x 140mm
Mounting Size
Threaded 3/4” bottom hub
Temperature Range
-40℃ ~ +55℃
Relative Humidity
100% with condensation
Wind Speed
Up to 150mph(240kph)
Warranty
5 years
Optional
Available in flashing pattern(40FPM)
Available with built-in photocell
Available with built-in alarm relay contacts-potential free contact

Double Obstruction Light Order Codes

Series
Single / Double
AC / DC
Voltage
 Flashing
Photosensor
Alarmrelay
Pattern(For double light only)
DL10
S
A
12
F
P
R
ST
D
D
24
SS
48
110
220
For example, DL10SD24R means a single, DC24V power supply, with built in alarm relay.
Material

PC + Die-casting Aluminum

Light Intensity

10cd

LED Color

Red/yellow/green/white/blue

Flash Pattern

Steady burning (default) / flashing type

Input Voltage

110-220VAC, 50/60 Hz;12VDC;24VDC;48VDC;

Customizable

AC and DC conditions / steady-on or flashing mode.

GPS

GPS synchronously (optional)

Items

Flashing rate adjustable

Warranty

5 years
