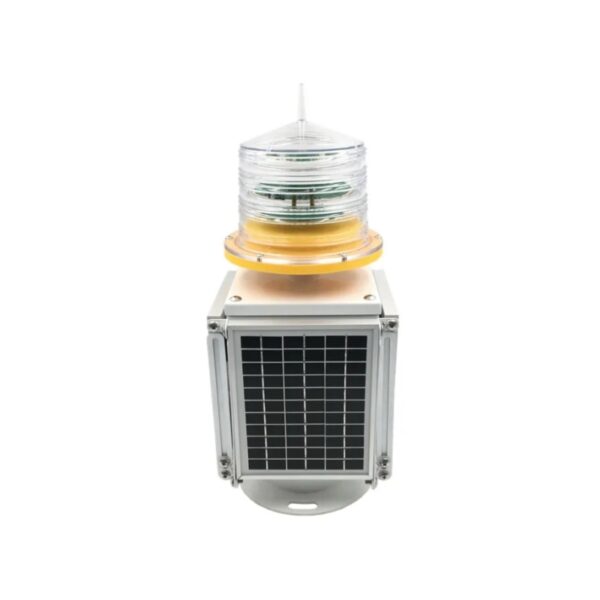

Solar marine LED lanterns, 6-10NM high-power solar warning light adopts advanced structural design, adopts 4 sets of angle-adjustable and high-efficiency solar panels, and is powered by solar-specific batteries.
It has an advanced power management system, which fully protects and charges the power supply in the case of battery overvoltage, overvoltage, undervoltage, overtemperature, undertemperature, etc., to extend the battery life.
It is equipped with a low-power control chip to reduce circuit power consumption, and the light source uses imported LED chips, so that the solar marine warning light has the characteristics of high brightness, low power consumption and long life.
This solar buoy light uses 316L stainless steel paint material, which is very convenient to install and transport.
This marine navigation aid lampshade is made of PC material, which has the characteristics of corrosion resistance, UV resistance and impact resistance.
Parameters of Solar Marine LED Lanterns
LIGHTING | |
Model: YFFY-LS/B Solar Led Marine Navigation Warning Lights | |
Visual Range | 6~10NM |
Lighting Period (h) | >20days(12hours/day) |
Compliant With | IALA |
Emitting Color | Red, White, Green, Yellow, White |
Operation Mode | 360 Light charateristies ajustable |
Vertical Divergence | >8° |
Horizontal Out-put | 360° |
Light Source | LED |
Light Lifespan | >100,000 Hours |
Color Temperature(CCT) | Cool white |
POWER SUPPLY | |
Solar Panel | 16.5V 6Wx4pcs |
Battery | 12V 14Ah, Special battery |
Power Consumption | ≤2W |
Solar Panel Lifespan | ＞5Years |
Input Voltage(V) | 12 |
Lamp Luminous Flux(lm) | 200 |
Emitting Color | Changeable |
STRUCTURE | |
Lens | Polycarbonate, UV Stabilize, Corrosion Resistance |
Lamp Body Material | Aircraft Aluminum, Die-casting, stainless steel |
Base Type | B15 |
Temperature Range | -40℃～70℃ |
Wind Load | ＞80m/s |
Overall Size(mm) | 522 x 522 x 472mm |
Installation Size(mm) | Φ160mmx M12(4pcs) |
Water-proof | IP68 |
Net Weight | >8.5KG |
Warranty | 3 Years |
Application of Solar Marine Navigation Light
This solar LED warning light can be used for the following:
- Buoy
- Marine navigation aids
- Sailing vessels
- Yachts
- Ports
- Wharfs
- Oil well platforms
- Aquaculture cages
- Derricks and other places that require warning and navigation.
Packaging Details
- 1 piece/set
- Single package size: 57X57X52 cm
- Single gross weight: 9.000 kg
We also have many other models of Solar marine LED lanterns, please feel free to consult.
