YFFY-LS/S LED Solar Powered Marine Lantern used advanced structure design, adopts 4 groups of solar panels and high efficiently, cooperate with solar dedicated battery as power supply.

This solar led lights advanced power management system will be used to charge the power in a comprehensive protection. In order to save the service life of battery when it is under the condition of short-voltage or over-voltage or its temperature is too high or too low.

The control circuit adopts the micro power control chip of this solar marine navigation lights, which effectively reduces the static power consumption of the circuit.

The solar warning lights its shell is die casting with aviation aluminum, this material has the specific of light weight and corrosion resistance, which can reduce the weight of light equipment, it is very convenient for installation and transportation.

Lampshade adopt with PC material of solar power warning lights, which can resist corrosion, anti-UV, anti-shock an so on.



Parameter of 4~6NM Solar Powered Marine Lantern

Name	Parameter	Name	Parameter
Type	YFFY-LS/S Solar Power Warning Lights	Light Source Life	> 100000 hours

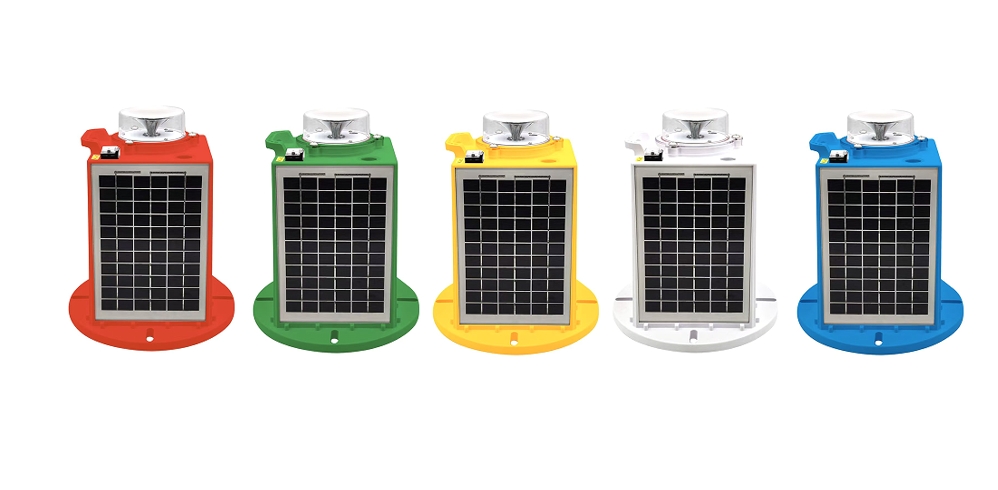

Power Provider	Mono-crystalline silicon solar panel	Optional Emitting Light Colors	Red, Amber, Yellow, Green, Blue, White
Battery Capacity	12.8V24AH	Battery Type	Lithium iron phosphate battery
Working Mode	Flashing 350 kinds mode with remote control	Continuous Burning Time in Rainy Days	> 15 days ( 12 hours a day)
Solar Panel Power	6W x 4pcs	Solar Panel Voltage	16.5V
Power Consumption	≤2W	Vertical Divergence	> 7°
Visual Range	4-6 NM	Horizontal Out-put	360°

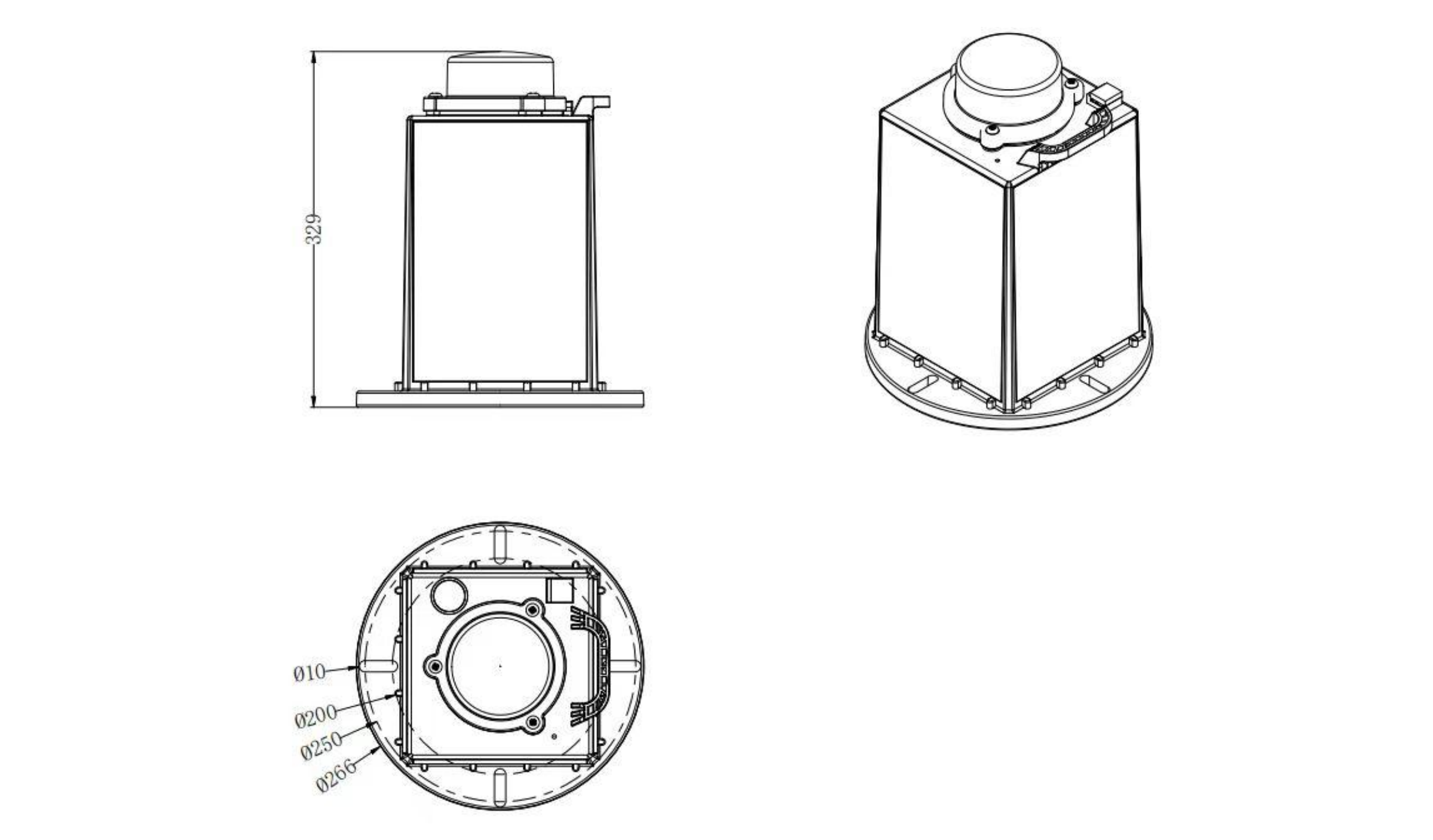

Light Source	LED	Overall Size(mm)	266×266×329 mm
Working Temperature	-40℃~70℃	Installation Size(mm)	Pitch circle 200~256 mm distributed 4 M10 holes
Storage Temperature	-40℃~70℃	Wind-speed Ability	80m/s
Sun Switch Illumination Threshold	Sun Switch Illumination Threshold	Light Characteristics	IALA standard 350 lights Characteristics adjustable
Weight	8.5KG	IP Protection	IP68



Function & Features

• This solar lights continuous working time in rainy day can reach more than 15 days ( 12 hours a day).
• Photocell can switch ON/OFF the light in rainy days or at night automatically.
• Standardization of optical design, high photoelectric conversion efficiency.
• Special LED chips for aviation obstruction lights, conversion efficiency is much higher than other general LED.
• Provide ability of lightning protection, light fastness, resist snow and rain.
• Based on LED technology, its color meet the IALA Recommendations E-200-1 requirement.
• Replaceable sealed lead-acid battery is used inside, with service life of more than 2 years.
• 350 light characteristics, user can adjust according to require.
• Bird spike against bird drop.
• No radio frequency (RF), no electromagnetic interference.
• This solar powered marine lantern working stable and low cost.

Application of Solar LED Warning Lights

• Sea buoys
• Marine boats
• Aids to navigation
• River way
• Shore beacon
• Fixed light pile
• Lighthouse
• Oilfield
• Derrick
• offshore
