Installation standards and importance of chimney aviation light.
In modern urban construction, high-rise buildings and industrial chimneys are increasing day by day. These towering structures pose a potential threat to aviation safety. To ensure flight safety, aviation obstruction lights are installed on chimneys, communication towers, building tops, etc. Its not only a regulatory requirement, but also a manifestation of corporate social responsibility and a guarantee of safety.

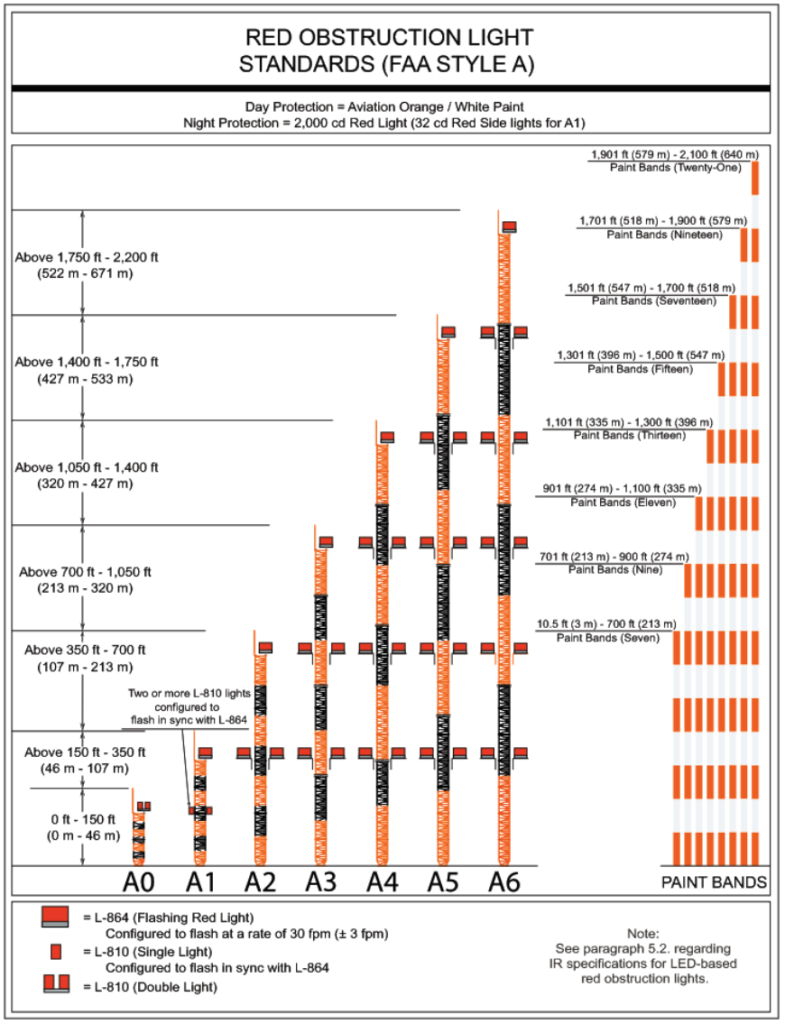

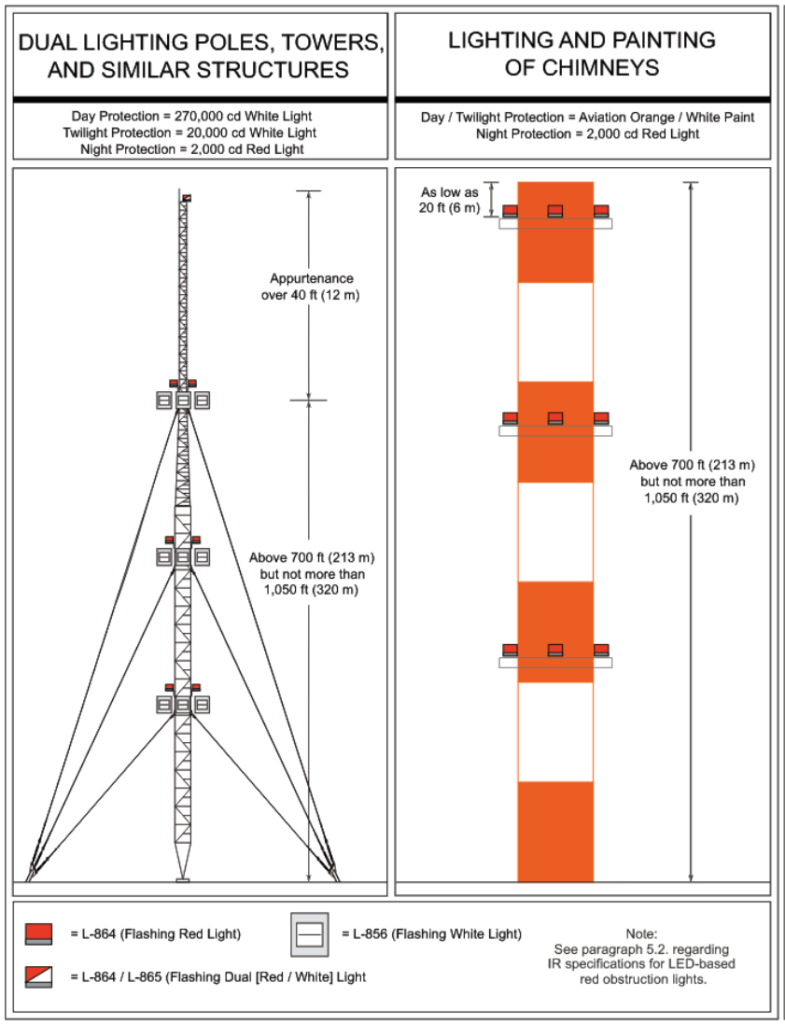

Installation Standards For Chimney Aviation Light
According to the relevant regulations of the International Civil Aviation Organization (ICAO), the installation of LED aviation obstruction warning lights for chimneys must comply with the following standards:
- 1. Height standard:
Generally, aviation obstruction lights need to be installed when the building height exceeds 45 meters, and chimneys, as tall structures, almost all need to be installed.
- 2. Lighting configuration:
Low-intensity aircraft warning lights (such as YFFY-LID type) are suitable for chimneys with a height of no more than 45 meters
Medium-intensity aviation obstruction lights are suitable for chimneys of 45 to 105 meters
High-intensity aviation lights are suitable for chimneys above 150 meters
- 3. Installation location:
It should be installed on the top of the chimney and any protruding parts, with a spacing of no more than 45 meters.
- 4. Light characteristics:
Low-intensity aviation warning lights should be red constant light or flashing, with a flash frequency of 20 to 60 times/minute.
- 5. Visibility requirements:
The chimney aviation light should be visible from at least 5 kilometers away in clear weather conditions.
Advantages of Using Aviation Lights For Chimneys
- Aviation safety guarantee:
Aviation obstacle warning lights can significantly improve the visibility of chimneys at night and prevent aircraft from colliding with them.
- Regulatory compliance:
Meet national and international aviation safety regulations and avoid legal risks.
- Corporate image enhancement:
Demonstrate the company’s sense of responsibility for public safety and enhance its social image.
- Cost-effectiveness:
Modern LED aviation lights have low energy consumption, long life and low maintenance costs.
- All-weather protection:
Can be customized to be unaffected by weather conditions and provide safety warnings 24 hours a day.
Product Recommendation
When choosing chimney aviation light as high-altitude obstacle warning lights, the reliability, energy efficiency and compliance of the product should be considered. The YFFY-LID low-intensity aviation obstruction light uses high-quality LED light sources, has the characteristics of low energy consumption, long life and simple maintenance, and fully complies with international aviation lighting standards. It is an ideal choice for chimney safety lighting. You are welcome to contact us at any time to inquire about discounted prices.
